Husqvarna 257 (1996-01) Chain Saw

Model: 257 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

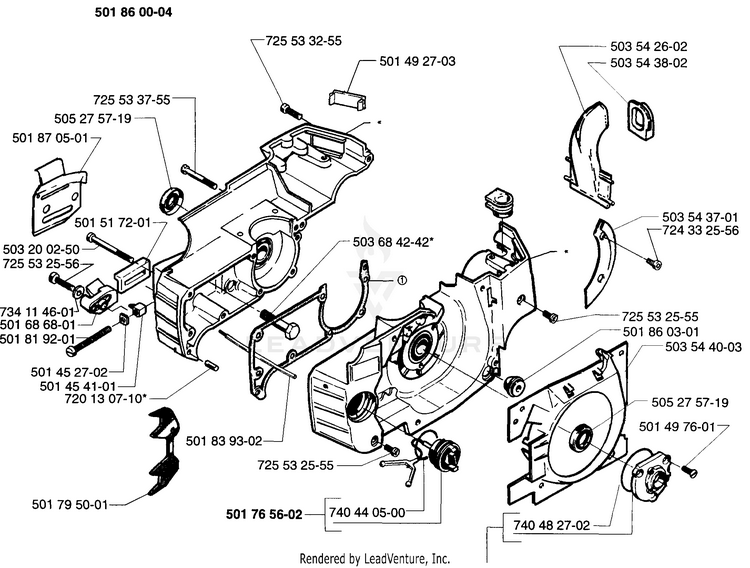

Crankcase Assembly

...
...
725533255
SCREW MC6S 5X22 HUS-725533255
...
501492703
COVER HUS-501492703
...
503684242
BAR BOLT HUS-503684242
...
503542602
AIR JET HUS-503542602
...
503546802
HUS-503546802
...
503543701
PLATE HUS-503543701
...
724332556
SCREW *** HUS-724332556
...
725532555
SCREW MC6S 5X10 HUS-725532555
...
501860301
BUFFER HUS-501860301
...
503544003
AIR CONDUCTOR HUS-503544003
...
740440500
O-RING HUS-740440500
...
740482702
O-RING HUS-740482702
...
501497601
SCREW HUS-501497601
...
505275719
SEAL RING HUS-505275719
...
501860004
CRANKCASE HUS-501860004
...
725533755
SCREW MC6S 5X35 HUS-725533755
...
505275719
SEAL RING HUS-505275719
...
501870501
CHAIN GUIDE PLATE HUS-501870501
...
501517201
CHAIN GUIDE HUS-501517201
...
503200250
SCREW HUS-503207450
...
725532556
SCREW MC6S 5X10 HUS-725532555
...
734114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
501686801
CHAIN CATCHER HUS-501686801
...
501452702
NUT HUS-501452702
...
501454101
PAWL HUS-501454101
...
721130710
HUS-721130710
...
501839302
OIL TANK VENT HUS-501839302
...
725532555
SCREW MC6S 5X10 HUS-725532555
...
501765602
OIL CAP HUS-501765602
...
501795001
FELLING DOG HUS-501795001
