Husqvarna 254 (1996-01) Chain Saw

Model: 254 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

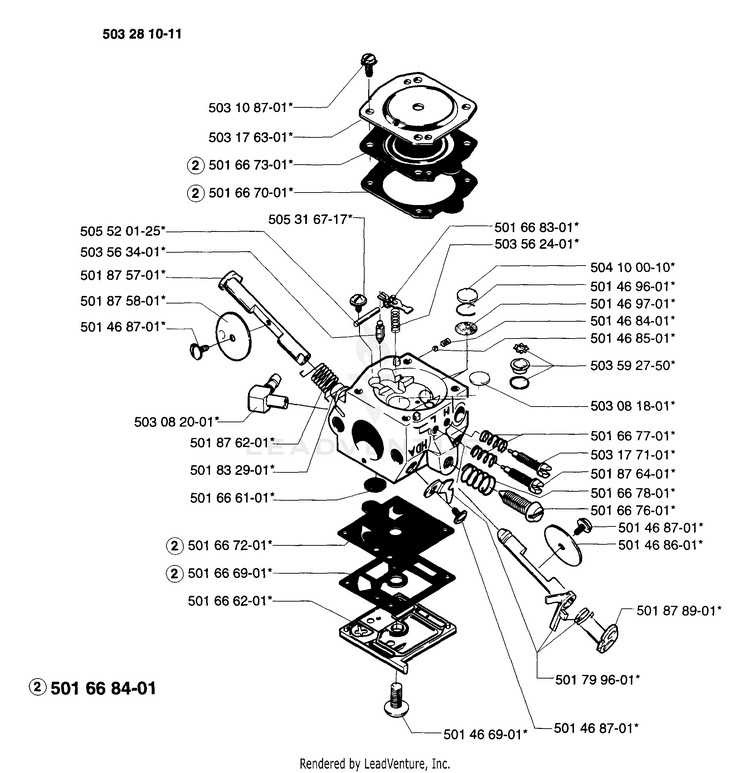

Carburetor Parts

...
...
503281011
CARB. HDA-144-1 WALBRO HUS-503281611
...
503108701
SCREW HUS-503584601
...
503176301
COVER METERING DIAPHR. HUS-503176301
...
501667301
METERING DIAPHRAGM HUS-501667301
...
501667001
GASKET, METERING SIDE HUS-501667001
...
505316717
SCREW HUS-505316717
...
505520125
FULCRUM PIN HUS-505520125
...
503563401
INLET NEEDLE HUS-503563401
...
501875701
Throttle Shaft HUS-501875701
...
501875801
Throttle Flap HUS-501875801
...
501468701
SCREW HUS-501468701
...
503082001
NIPPLE HUS-503082001
...
501876201
Throttle Return Spring HUS-501876201
...
501832901
BUSHING HUS-501832901
...
501666101
FUEL INLET SCREEN HUS-501666101
...
501667201
PUMP DIAPHRAGM HUS-502254701
...
501666901
GASKET, PUMP SIDE HUS-501666901
...
501666201
COVER, PUMP SIDE HUS-501666201
...
501668401
REPAIR KIT DIAPHRAGM SET HUS-501668401
...
501466901
SCREW HUS-501466901
...
501468701
SCREW HUS-501468701
...
501799601
START LEVER SET HUS-501799601
...
501878901
Choke Shaft HUS-501878901
...
5014686013
HUS-5014686013
...
501468701
SCREW HUS-501468701
...
501667601
Screw HUS-501667601
...
501667801
IDLE SCREW SPRING HUS-530035121
...
501876401
NEEDLE IDLE HUS-501876401
...
503177101
Needle High Speed HUS-503177101
...
501667701
SPRING HUS-501667701
...
503081801
Washer HUS-503081801
...
501668301
LEVER HUS-501668301
...
503562401
SPRING HUS-503562401
...
504100010
CUP PLUG HUS-530035225
...
501469601
HUS-501469502
...
501469701
CHECK VALVE SCREEN HUS-530035124
...
501468401
SPRING HUS-501468401
...
50468501
HUS-50468501
...
503592750
REPAIR KIT CARBURETOR HUS-503592750
