Husqvarna 254 (1994-06) Chain Saw

Model: 254 (1994-06)

Back To Assemblies

Save Part Not Listed?
product name

Tank Assembly

...
...
501761310
TANK KPL HUS-501761310
...
501768302
FUEL HOSE HUS-581756103
...
503443201
KIT FUEL FILTER HUS-591375401
...
720124020
PIN HUS-720182520
...
501877702
THROTTLE CATCH HUS-501877702
...
503097904
LEVER HUS-503097904
...
720131420
PIN HUS-720131520
...
501873101
FUEL TANK VENT HUS-501873101
...
501872907
FRONT HANDLE HUS-501872907
...
501867202
Spacer HUS-501867202
...
503210625
SCREW HUS-503214925
...
503210616
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
503263017
O-RING HUS-503263017
...
501867001
ANTIVIBE ELEMENT HUS-501867002
...
501867002
ANTIVIBE ELEMENT HUS-501867002
...
503084601
SPRING HUS-503084601
...
503404701
HANDLE FILLER HUS-503404701

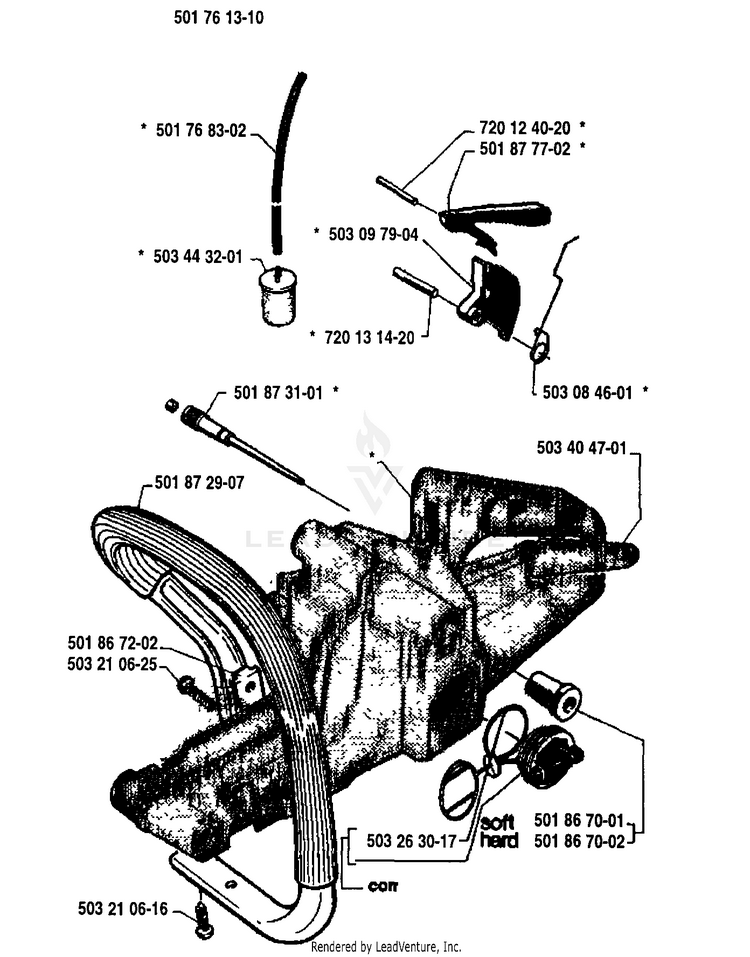

Schematic Image Zoomed
