Husqvarna 254 (1987-01) Chain Saw

Model: 254 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

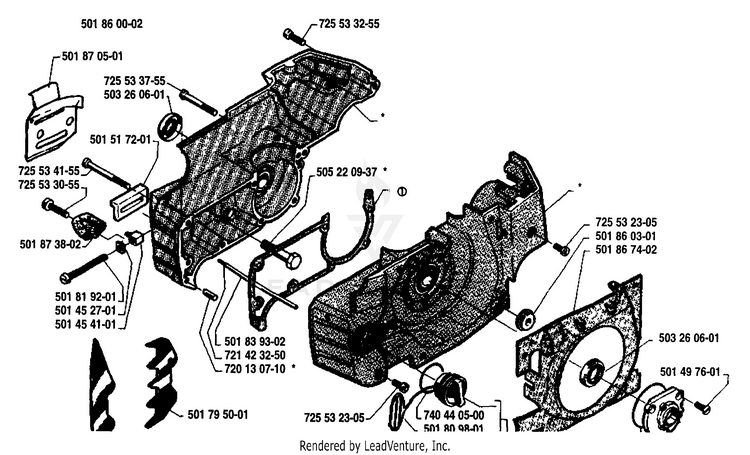

Crankcase

...
...
501860002
CRANKCASE HUS-501860004
...
501870501
CHAIN GUIDE PLATE HUS-501870501
...
725533755
SCREW MC6S 5X35 HUS-725533755
...
503260601
SEAL RING HUS-505275719
...
501517201
CHAIN GUIDE HUS-501517201
...
725534155
SCREW MC6S 5X50 HUS-725534155
...
725533055
SCREW MC6S 5X18 HUS-725533055
...
501873802
CHAIN CATCHER HUS-501873802
...
725533255
SCREW MC6S 5X22 HUS-725533255
...
505220937
BAR BOLT HUS-505220937
...
501839302
OIL TANK VENT HUS-501839302
...
721423250
SPIRAL PIN 3.5X18 HUS-721423250
...
720130710
Pins HUS-720130752
...
501795001
FELLING DOG HUS-501795001
...
725532305
SCREW MC6S 5X10 HUS-725532555
...
740440500
O-RING HUS-740440500
...
501809801
TANK LOCK HUS-503578901
...
725532305
SCREW MC6S 5X10 HUS-725532555
...
501860301
BUFFER HUS-501860301
...
501867402
AIR CONDUCTOR HUS-501867402
...
503260601
SEAL RING HUS-505275719
...
501497601
SCREW HUS-501497601
...
501819201
SCREW HUS-501819201
...
501452701
NUT HUS-501452702
...
501454101
PAWL HUS-501454101
