Husqvarna 254 (1987-01) Chain Saw

Model: 254 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

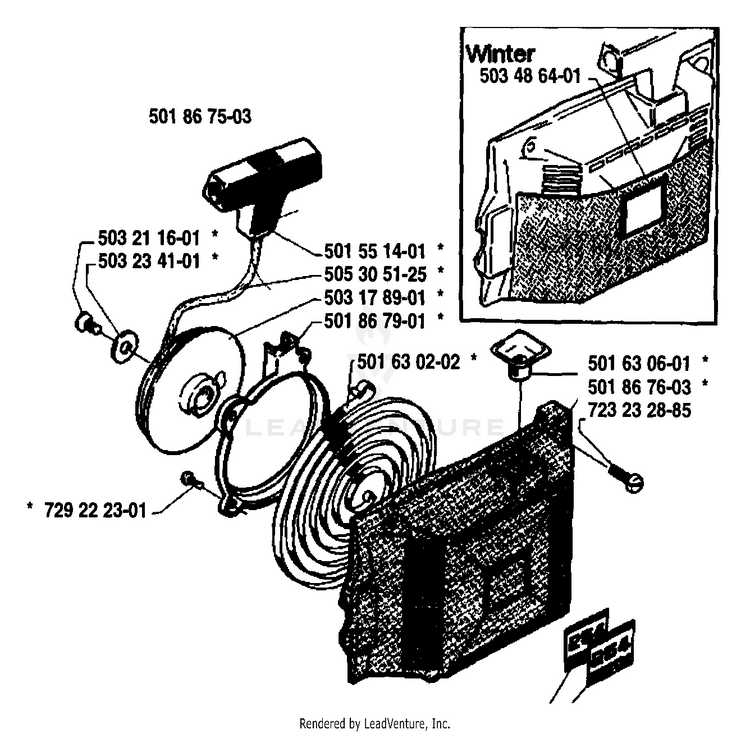

Starter Assembly

...
...
501867503
STARTER ASS'Y HUS-503541601
...
503211601
SCREW 10X16 HUS-503211601
...
503234101
WASHER HUS-503234101
...
501551401
STARTER HANDLE HUS-503543901
...
505305125
STARTER ROPE HUS-505305125
...
503178901
HUS-503178901
...
501867901
HUS-501867901
...
501630202
RECOIL SPRING HUS-501630203
...
501630601
SLEEVE HUS-501630601
...
501867603
STARTER HOUSING HUS-503541701
...
723232885
SCREW HUS-724132855
...
729222301
SCREW CSK B4X8 HUS-729222301
...
503486401
HUS-503486401
