Husqvarna 254 (1987-01) Chain Saw

Model: 254 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

Oil Pump / Clutch

...
...
725529206
SCREW MC6S 4X16 HUS-725529356
...
503230001
WASHER 4.2X9 HUS-503230001
...
503167301
OIL PUMP HUS-503167301
...
501664901
PLUG HUS-501664901
...
501872101
PUMP PLUNGER HUS-501872101
...
503230004
WASHER 6.1X9 HUS-503230004
...
501615801
SPRING HUS-501615801
...
501466901
SCREW HUS-501466901
...
729222101
SCREW CSK B4X6 HUS-729222101
...
501872301
Catch Adj.Screw HUS-501872301
...
503136601
HUS-503136601
...
501624301
GASKET HUS-501624301
...
501876501
OIL HOSE HUS-501876501
...
503253401
SUPPORT BUSHING HUS-503253401
...
501457402
11892 POWER MATE RIM HUS-640200010
...
504523002
RIM 18720 3/8" 7T HUS-640200036
...
501864101
PROTECTOR HUS-501864101
...
501544102
OIL SCREEN HUS-501544102
...
5053694
HUS-5053694
...
501456101
SPRING HUS-501456101
...
455403
HUS-455403

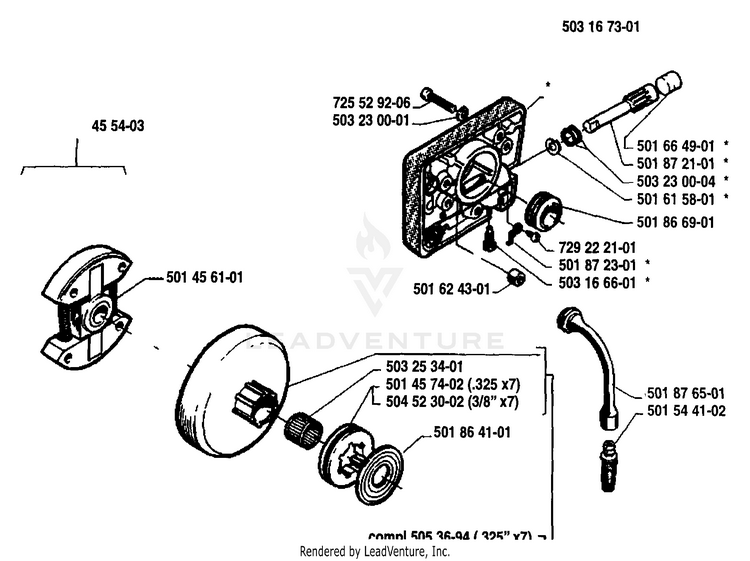

Schematic Image Zoomed
