Husqvarna 254 (1986-04) Chain Saw

Model: 254 (1986-04)

Back To Assemblies

Save Part Not Listed?
product name

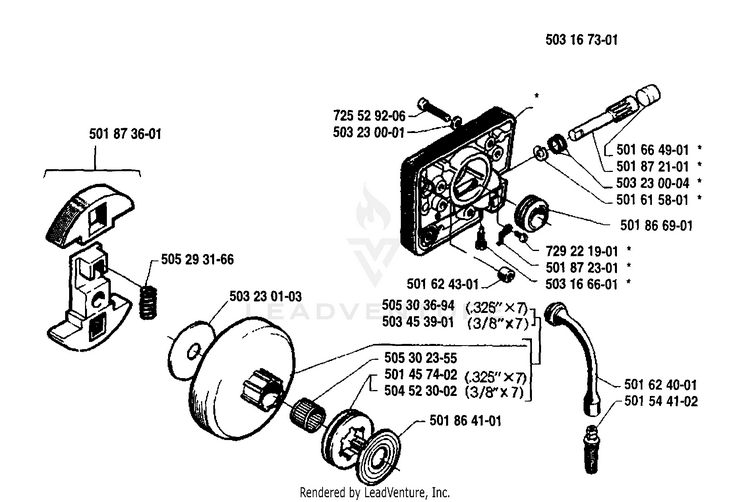

Oil Pump/Clutch

...
...
501873601
CLUTCH ASSY HUS-537110502
...
505293166
PRESSURE SPRING HUS-505293166
...
503230103
WASHER HUS-503230103
...
501624301
GASKET HUS-501624301
...
505303694
29175 DRUM HUS-505303694
...
503453901
34425 POWER MATE SPROCKET SYS. HUS-640200145
...
505302355
SUPPORT BUSHING HUS-503253401
...
501457402
11892 POWER MATE RIM HUS-640200010
...
504523002
RIM 18720 3/8" 7T HUS-640200036
...
501864101
PROTECTOR HUS-501864101
...
729221901
HUS-729221901
...
501872301
Catch Adj.Screw HUS-501872301
...
503166601
SCREW HUS-503166601
...
501624001
HUS-501624001
...
501544102
OIL SCREEN HUS-501544102
...
503167301
OIL PUMP HUS-503167301
...
501664901
PLUG HUS-501664901
...
501872101
PUMP PLUNGER HUS-501872101
...
503230004
WASHER 6.1X9 HUS-503230004
...
501615801
SPRING HUS-501615801
...
501866901
DRIVE WHEEL HUS-501866901
...
725529206
SCREW MC6S 4X16 HUS-725529356
...
503230001
WASHER 4.2X9 HUS-503230001
