Husqvarna 253 R (2011-08) Brushcutter/Clearing Saw

Model: 253 R (2011-08)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

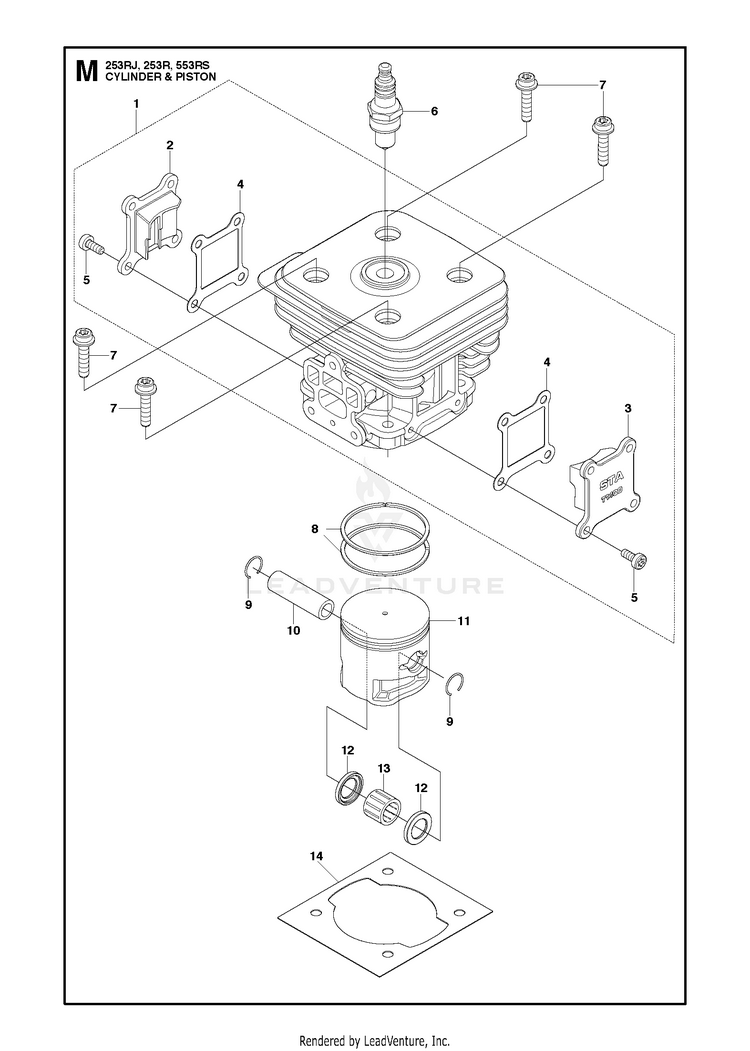

CYLINDER PISTON

...
...
8
RING HUS-521745501
...
6
SPARK PLUG NGK CMR7H HUS-506615101
...
4
GASKET, TR HUS-521634601
...
11
NEEDS DESCRIPTION HUS-528774001
...
10
PISTON PIN HUS-510916901
...
1
NEEDS DESCRIPTION HUS-582898301
...
14
GASKET HUS-521634301
...
7
BOLT HUS-506745201
...
12
WASHER HUS-513622401
...
13
BEARING HUS-502849901
...
2
NEEDS DESCRIPTION HUS-575346801
...
9
SNAP RING HUS-502849801
...
5
BOLT HUS-504119201
...
3
NEEDS DESCRIPTION HUS-575346701
