Husqvarna 253 R (2011-08) Brushcutter/Clearing Saw

Model: 253 R (2011-08)

Back To Assemblies

Save Part Not Listed?
product name

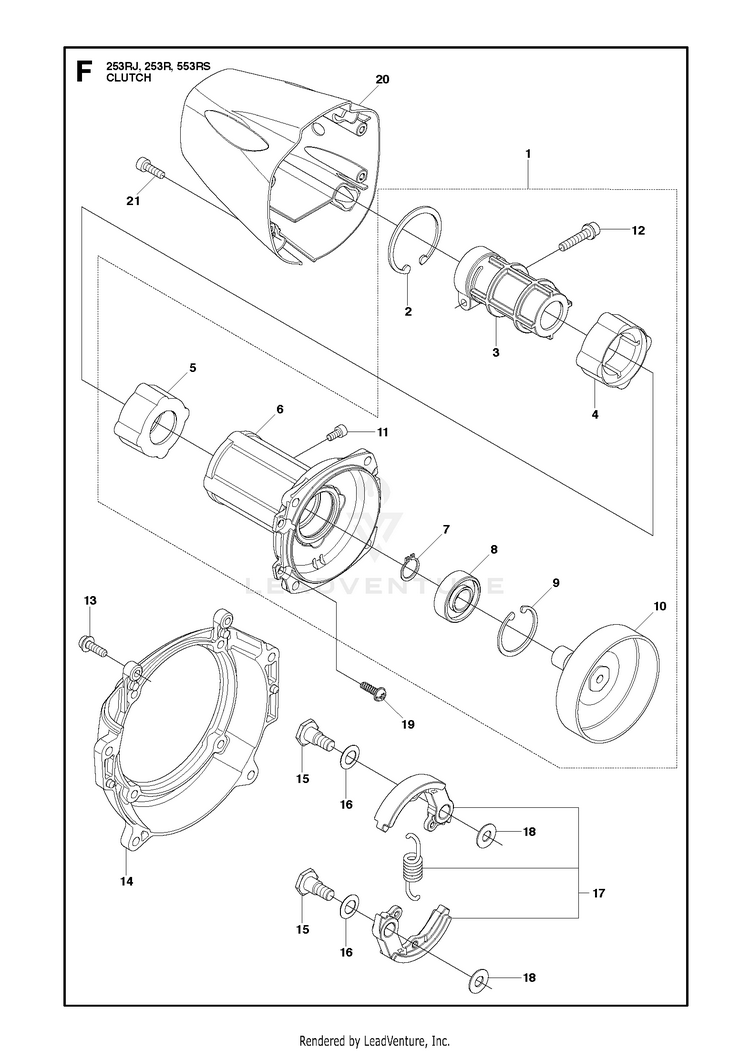

CLUTCH

...
...
5
ABSORBER HUS-521665101
...
12
BOLT,TORX M6X30 HUS-521862301
...
20
CLUTCH COVER HUS-510173101
...
1
HOUSING ASSY HUS-521664801
...
11
BOLT 08 HUS-504119601
...
15
SCREW HUS-505297801
...
17
SHOE COMP HUS-521636401
...
13
BOLT HUS-515391301
...
8
BEARING 0600406202 HUS-516131701
...
21
BOLT HUS-523019001
...
2
RING HUS-516126401
...
7
RING, SNAP, M15 x 1.0 HUS-516124201
...
14
HUS-525431801
...
4
ABSORBER HUS-521665201
...
18
WASHER HUS-505298001
...
16
WASHER HUS-505298101
...
9
SNAP RING HUS-502849301
...
6
HOUSING HUS-521664901
...
3
CLAMP HUS-521665001
...
10
DRUM HUS-591425901
...
19
SCREW HUS-521517901
