Husqvarna 25009 - 96083001000 (2014- 03) Cultivator/Tiller

Model: 25009 - 96083001000 (2014- 03)

Save
Part Not Listed?Part Not Listed?

product name

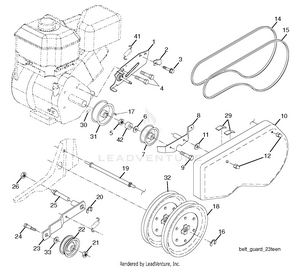

BELT GUARD & PULLEY

...
...
20
KLIP RING TI HUS-812000036

...
5
NUT.LOCK.5/16-18 HUS-532751153

...
7
PULLEY FLAT IDLER HUS-584911201

...
22
PULLEY.W/SPACER.2.25 HUS-532180522

...

...
12
NUT-CAP TI HUS-583644101

...
31
ENGINE.PULLEY.TILLER HUS-532101189

...
6
BUSHING SPACER.AXLE HUS-532437259

...
19
BOLT.BELT.GUARD HUS-532188502



...
41
SPRING.EXTENSION HUS-532180307

...
42
SPACER.CONTROL.LEVER HUS-532421613

...
21
NUT.LOCK.5/16-18 HUS-532751153

...
32
SHEAVE.TRANS HUS-532151223


...
15
Belts Reverse HUS-599385301

...
10
GUARD.BELT.TILLER.ORANGE HUS-532440709

...

...
11

...
29
PAD IDLER TI HUS-532109227


...
2
CONDUIT.CLIP.PLATED HUS-532009484

...
16
RETAINING RING LT HUS-812000028

...
3
SCREW.HXTAP.10-24 HUS-532150050

...
23
ARM.ASM.IDLER.PNT HUS-580530002

...
8
ARM.ASM.REV.IDLER.TILLER.BLACK HUS-532446051

...
18
SHEAVE,TRANS."D" HUS-532151236

...

...
33
WASHER.20X8.5 HUS-532155415

...
1
BRACKET.ASM.GUARD.BELT.BLAC HUS-532446043

...
25
SHAFT.IDLER.TILLER HUS-532106968

DECALS

...
...
13
DECAL,ETHANOL E85 WARNING HUS-532423830

...
6
DECAL.CONTROL FOR HUS-584449001

...
9
DECAL.WARNING.SHLD.ENG/FR HUS-532422972

...
8

...
7
DECAL.CONTROL.REV HUS-584449101

...
5
DECAL TI (2 2) HUS-532110614

HANDLE

...
...

...
29
RETAINER RING HUS-582730101

...
5
NUT.LOCK.5/16-18 HUS-532751153

...
14
PANEL.PNT.HANDLE.ORANG.MS668 HUS-532446074



...
20
PIN, PIVOT HUS-532188555

...
13
GSPW Bolts HUS-595901601

...
1
BRACKET.HANDLE.ORANGE HUS-532440718

...
4
HANDLE.PNT.LH.DOUBLE.BEND HUS-532440714

...
3
GRIP.HANDLE.BLACK HUS-532165787

...
30
CLIP.ROUTING DUAL HUS-532181580

...
12


...
16
HANDLE.PNT.RH.DOUBLE.BEND HUS-532440715

...
10
WASHER SPRING LOCK WASHER WITH HUS-596238801

...
19
CONTROL ASM.TINE.49.88 HUS-532188562

TINE ASSEMBLY

...
...
1
TINE.ASM.OUTER.RH.13.PNT RH HUS-583854602

...
6

...
4
TINE.ASM.INNER.LH.13.PNT LH HUS-583854202

...
3
TINE.ASM.INNER.RH.13.PNT RH HUS-583854402

...
5
TINE.ASM.OUTER.LH.13.PNT.479 LH HUS-583854502

...
2
SPRING RETAINER HUS-532003146

TRANSMISSION

...
...
14
SPACER.SPLIT.327 X 1.00 HUS-532446548


...
17

...
6
SHIELD.PNT.TINE.24".ORANGE HUS-532440704

...
21
NUT.LOCK.5/16-18 HUS-532751153

...
19
Bolt, Hex 1/4-28 x 3/4 Gr. 5 HUS-874610412

...
16

...
5
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

...
18
WASHER SPRING LOCK WASHER WITH HUS-596029801

...
12
TRANSMISSION.ASM.W/1".D-SHAFT HUS-532151222


...
2
Bolt, Hex 3/8-16 x 3-1/4 HUS-874780652

...
11
BOLT, HEX HEAD 5/16-18 X 2.5 HUS-532187912

...
8
BRACKET.ENGINE.TILLER.BLACK LH HUS-532446003

...
10

...
7
BRACKET.ENGINE.RH.TILLER.BLACK RH HUS-532446006

...
20
B&S 130G32-0056-F1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000

WHEEL & DEPTH STAKE ASSEMBLY

...
...
8
SUPPORT.STAKE.RH.BLK(2 2MC) RH HUS-532001952

...
19
BRACKET.WHEEL.BLACK HUS-532446011

...
16
BOLT.SHOULDER HUS-532121117

...
13
SUPPORT.STAKE.DEPTH.LH.BLACK LH HUS-532446060

...
9
STAKE.DEPTH.13.25.W/9HOLES HUS-532446066



...
25
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416

...
3
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501


...
10


...
24

...
22

...

...
5
WASHER SPRING LOCK WASHER WITH HUS-596238801

...
15
SPRING.STAKE HUS-532446063

...
1
PIN.CLEVIS.HD.25X1.75.TILLER HUS-532443676

...
17
WHEEL.8X1.75.5SPK.MAG.WHITE.BR HUS-532427026

...
7
COTTER PIN HUS-532004921

...
...
...
...
