Husqvarna 250 PS (1996-02) Pruning Saw

Model: 250 PS (1996-02)

Back To Assemblies

Save Part Not Listed?
product name

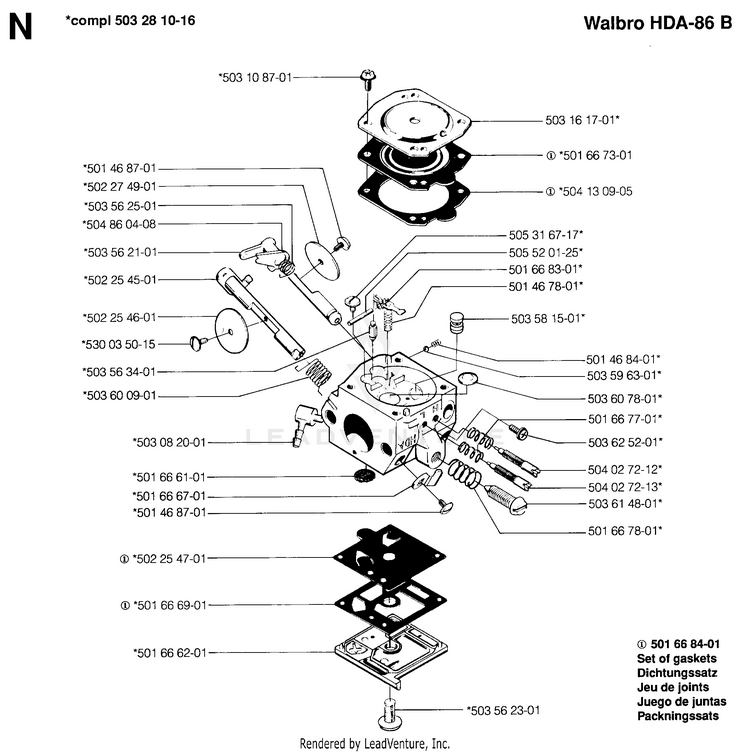

CARBURETOR DETAILS

...
...
504 13 09-05
GASKET HUS-504130905
...
501 66 73-01
METERING DIAPHRAGM HUS-501667301
...
503 56 34-01
INLET NEEDLE HUS-503563401
...
501 66 69-01
GASKET, PUMP SIDE HUS-501666901
...
503 60 78-01
WELCH PLUG HUS-503574201
...
505 52 01-25
FULCRUM PIN HUS-505520125
...
503 59 63-01
HUS-503596301
...
503 58 15-01
JET HUS-503581501
...
504 02 72-13
IDLING SCREW HUS-504027213
...
501 66 61-01
FUEL INLET SCREEN HUS-501666101
...
503 56 23-01
Screw HUS-503562301
...
502 25 47-01
PUMP DIAPHRAGM HUS-502254701
...
501 46 87-01
SCREW HUS-501468701
...
530 03 50-15
SCREW SHUTTERS HUS-530035015
...
501 68 78-01
IDLE SCREW SPRING HUS-530035121
...
504 02 72-12
HUS-504027212
...
502 25 46-01
THROTTLE FLAP HUS-502254601
...
503 10 87-01
SCREW HUS-503584601
...
502 27 49-01
THROTTLE FLAP HUS-502254601
...
504 86 04-08
LEVER HUS-537158201
...
501 66 62-01
COVER, PUMP SIDE HUS-501666201
...
503 56 25-01
SPRING HUS-537158101
...
503 08 20-01
NIPPLE HUS-503082001
...
503 28 10-16
CARBURETOR HUS-503281016
...
501 66 67-01
THROTTLE STOP HUS-501666701
...
503 60 09-01
Spring HUS-503600901
...
505 31 67-17
SCREW HUS-505316717
...
503 61 48-01
IDLE SPEED SCREW HUS-503614801
...
503 56 21-01
Choke Shaft HUS-503562101
...
503 62 52-01
SCREW HUS-503625201
...
501 46 84-01
SPRING HUS-501468401
...
503 16 17-01
Cap HUS-503161701
...
502 25 45-01
Throttle Shaft HUS-502254501
...
501 66 77-01
SPRING HUS-501667701
...
501 46 78-01
SPRING HUS-501795901
...
501 66 83-01
LEVER HUS-501668301
