Husqvarna 250 PS (1996-02) Pruning Saw

Model: 250 PS (1996-02)

Back To Assemblies

Save Part Not Listed?
product name

CUTTING EQUIPMENT

...
...
502 42 55-03
RETAINING RING HUS-502425503
...
502 40 49-81
LOCK NUT HUS-502425901
...
502 40 65-14
HOSE 4 M HUS-502406514
...
503 20 20-05
SCREW HUS-503202005
...
502 40 89-01
O-RING HUS-502408901
...
503 22 66-01
NUT HUS-503226601
...
725 63 25-55
HUS-725632555
...
502 40 47-02
BALL JOINT COMPLETE HUS-502428303
...
502 26 61-01
HUS-502266101
...
502 40 89-07
0-RING HUS-502408907
...
502 42 32-01
HOSE GUARD COMPLETE HUS-502423201
...
502 40 52-01
HUS-502405201
...
502 40 65-15
HOSE 5 M HUS-502406515
...
502 40 75-01
NIPPLE-COMPRESSION SIDE HUS-502407501
...
503 20 30-11
SCREW HUS-503203011
...
502 42 54-01
JOINT BALL HUS-502425401
...
503 22 65-01
NUT HUS-503226504
...
502 40 74-02
HUS-502407402
...
502 42 83-01
BALL JOINT HUS-502428301
...
502 40 42-02
HUS-502404202
...
502 42 52-03
SLEEVE HUS-502425205
...
502 40 88-01
HUS-502408801
...
502 42 22-02
HUS-502422202
...
502 42 38-02
VALVE HUS-502423802
...
502 40 65-13
HOSE 3 M HUS-502406513
...
502 42 22-06
SHAFT HUS-502422206
...
502 40 65-16
HOSE 6 M HUS-502406516
...
502 40 61-02
HUS-502406102
...
502 42 61-01
HUS-502426101
...
502 40 40-01
LOOP HUS-502404001
...
502 40 59-01
GASKET HUS-502405901
...
502 42 59-01
LOCK NUT HUS-502425901
...
502 42 21-05
SHAFT HUS-502422105
...
503 21 06-25
SCREW HUS-503214925
...
502 40 60-01
CHAIN TENSIONER HUS-502406001
...
502 40 65-12
HOSE 2 M HUS-502406512
...
502 42 20-02
SHAFT TOP HUS-502422002
...
502 40 88-02
HUS-502408802
...
502 42 53-03
WINGNUT HUS-502425303
...
502 40 71-01
WASHER HUS-502407101
...
502 40 03-15
HYDRAULIC MOTOR HUS-502400315
...
502 40 50-01
BAR MOUNTING ASSY HUS-537164901
...
740 38 27-01
SEAL RING HUS-740382701
...
502 41 91-02
ADJUSTMENT SCREW-CHAIN LUBE HUS-502419102
...
502 42 57-01
SOCKET JOINT HUS-502425701
...
502 40 70-01
CLATCH HUS-502407001
...
502 40 72-16
CLAMP HUS-502407216
...
502 40 64-01
HUS-502406401
...
502 42 18-01
HOSE CONNECTION HUS-502421801
...
723 12 84-55
HUS-723128455
...
502 42 56-03
SLEEVE HUS-502425603
...
502 40 78-01
DUST PROTECTOR HUS-502407801
...
503 20 02-16
SCREW HUS-503200216
...
503 30 16-09
91VG-32 CHAIN LOOP NLA HUS-608100166
...
502 40 91-01
DUST PROTECTOR HUS-502409101
...
502 42 80-01
HUS-502428001
...
502 40 45-01
HUS-502404501
...
503 21 06-22
SCREW HUS-503210622
...
502 40 63-01
HUS-502406301
...
502 40 94-81
HUS-502409481

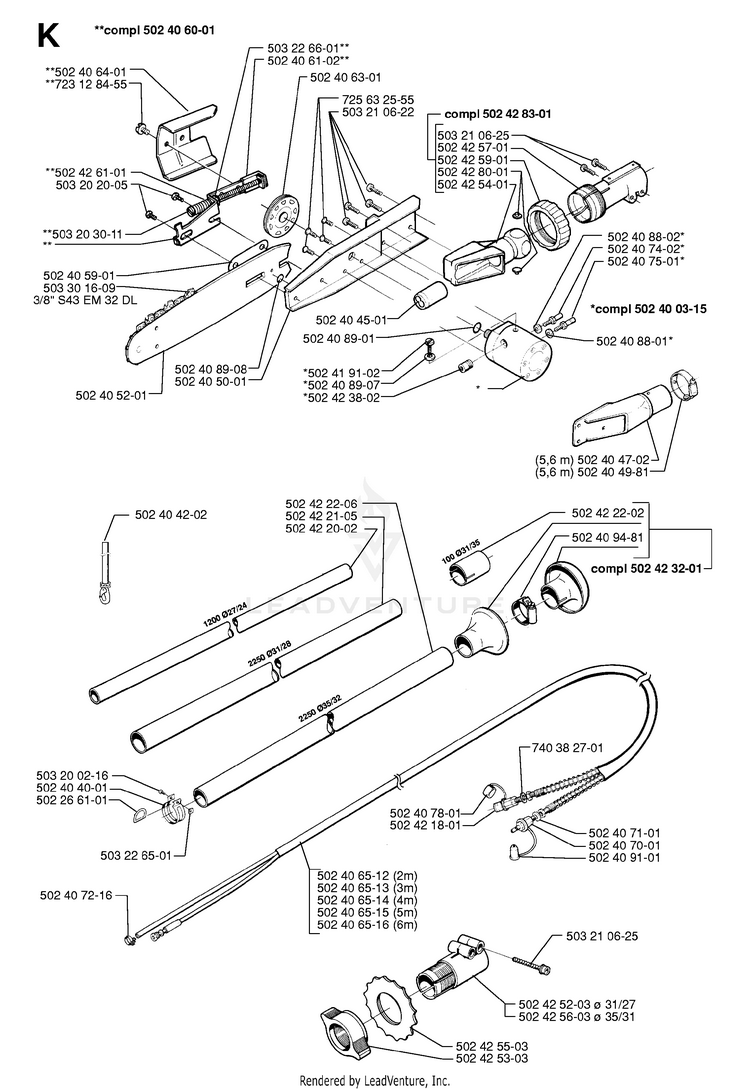

Schematic Image Zoomed
