Husqvarna 25 RL (1988-01) Line Trimmer

Model: 25 RL (1988-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

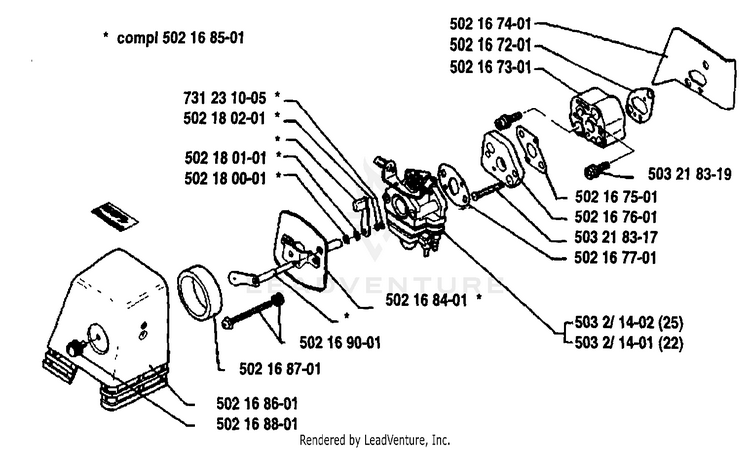

Air Filter / Carburetor

...
...
502168501
CHOKE CONTROL HUS-502168501
...
731231005
NUT HUS-731231005
...
502180201
WASHER NLA HUS-502180201
...
502180101
RETAINING RING HUS-502180101
...
502180001
O-RING HUS-502180001
...
502167401
PLATE HUS-502167401
...
502167201
GASKET HUS-502167201
...
502167301
INSULATOR ASSY HUS-502167301
...
503218319
SCREW 5 X 23 HUS-502169901
...
502167501
GASKET HUS-502167501
...
502167601
INLET TUBE NLA HUS-502167601
...
503218317
SCREW NLA HUS-502185101
...
502167701
GASKET HUS-502167701
...
5032/1402
HUS-50321402
...
5032/1401
HUS-50321401
...
502168401
FILTER HOLDER HUS-502168401
...
502169001
SCREW AND WASHER NLA HUS-502169001
...
502168701
FILTER ELEMENT HUS-502168701
...
502168601
FILTER COVER HUS-502168601
...
502168801
KNOB HUS-502168801
