Husqvarna 243 RJ Brushcutter/Clearing Saw

Model: 243 RJ

Back To Assemblies

Save Part Not Listed?
product name

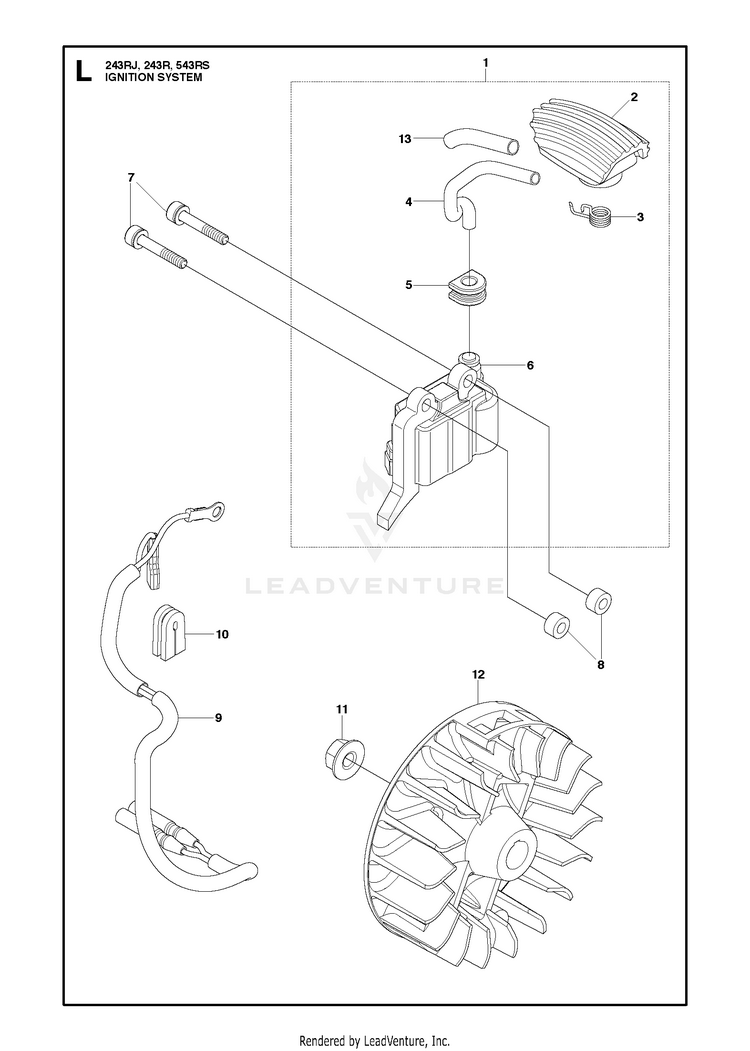

IGNITION SYSTEM

...
...
7
BOLT M4 X 25 HUS-521515801
...
4
NEEDS DESCRIPTION 20190100001-Current HUS-585094701
...
9
CORD-COMP 8488M00150 20090900001-20190100000 HUS-521525701
...
2
CAP HUS-521610001
...
3
SPRING HUS-506655201
...
5
GROMMET Z114072110 20090900001-20190100000 HUS-513190201
...
11
NUT(RPLS 1140-43230&182301) HUS-516437401
...
9
CORD ASSY 20190100001-Current HUS-577574901
...
10
GROMMET HUS-506615901
...
1
IGNITION MODULE ASSY 20190100001-Current HUS-577133903
...
12
ROTOR 20190100001-Current HUS-583918901
...
1
COIL 20090900001-20190100000 HUS-582501201
...
8
SPACER HUS-588171401
...
6
RP_CAP HUS-516744001
...
13
TUBE 243R, 543RS HUS-579453601
...
12
NEEDS DESCRIPTION 20090900001-20190100000 HUS-583918801
...
4
CORD 848GG071D0 20090900001-20190100000 HUS-521624301
