product name

Husqvarna 242 (1994-04) Chain Saw

Model: 242 (1994-04)

Back To Assemblies

Save Part Not Listed?
product name

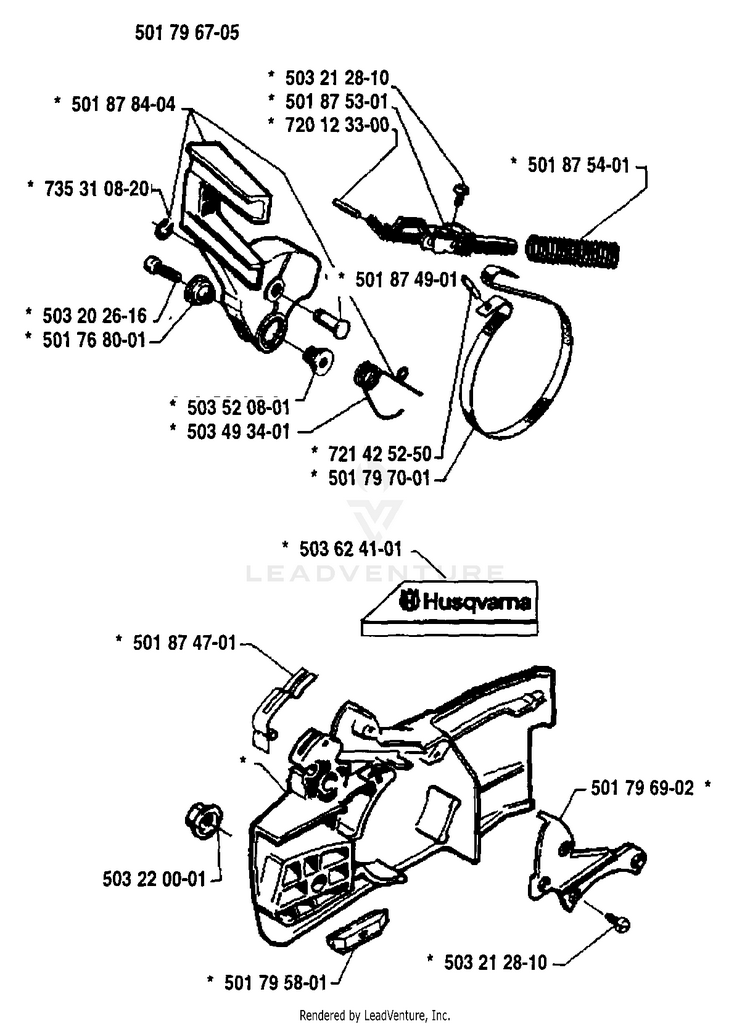

Chain Brake Assembly

...
...
501796705
CHAINBRAKE HUS-501796708
...
501878404
HAND GUARD HUS-503892701
...
735310820
E-RING 4 HUS-735310820
...
503212810
SCREW HUS-503212810
...
501875301
KNEE-JOINT HUS-501875301
...
720123300
PIN 3X10 HUS-720123300
...
503202616
SCREW HUS-503202616
...
501768001
PIVOT SLEEVE R HUS-501768001
...
501874901
PIVOT PIN HUS-503802701
...
503520801
PIVOT SLEEVE L HUS-503520801
...
503493401
LOCK SPRING HUS-503493401
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
501797001
BRAKE BAND HUS-501797001
...
503624101
DECAL HUS-503768101
...
501874701
SPRING HUS-501874701
...
503220001
NUT M8 FLANGE HUS-503220001
...
501795801
GUIDE HUS-501795801
...
503212810
SCREW HUS-503212810
...
501796902
COVER HUS-501796902
...
501875401
SPRING HUS-501875401
