Husqvarna 242 (1994-04) Chain Saw

Model: 242 (1994-04)

Back To Assemblies

Save Part Not Listed?
product name

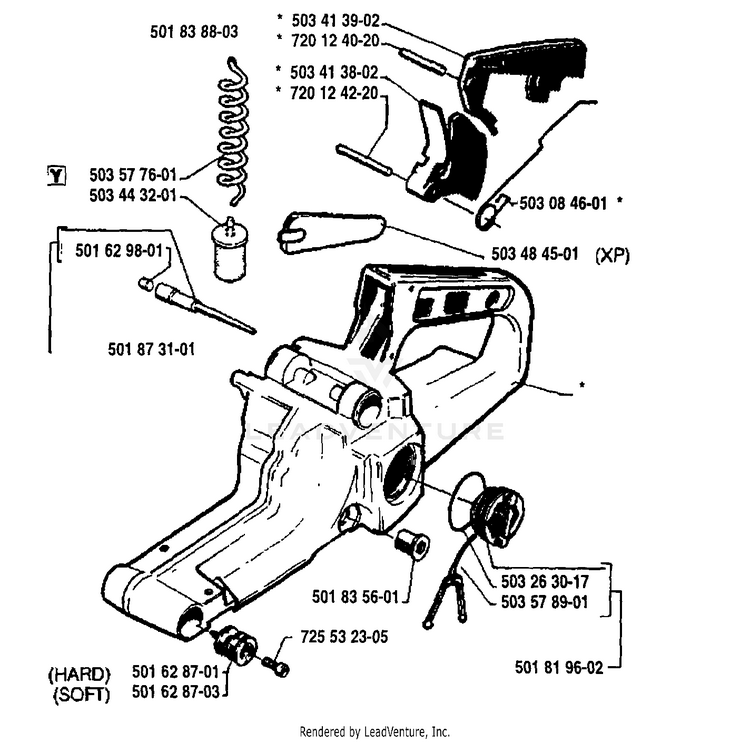

Tank Assembly

...
...
501838803
TANK UNIT CPL HUS-501838803
...
503577601
FUEL HOSE HUS-581756205
...
503443201
KIT FUEL FILTER HUS-591375401
...
501629801
VALVE PLUG HUS-501629801
...
501873101
FUEL TANK VENT HUS-501873101
...
503413902
THROTTLE LOCK HUS-503413902
...
720124020
PIN HUS-720182520
...
503413802
THROTTLE LEVER HUS-503413802
...
720124220
PIN 3X30 HUS-720124220
...
501835601
ANTIVIBE ELEMENT HUS-501835601
...
725532305
SCREW MC6S 5X10 HUS-725532555
...
501628701
ANTIVIBE ELEMENT HUS-501628701
...
501628703
ANTIVIBE ELEMENT HUS-501628703
...
503263017
O-RING HUS-503263017
...
503578901
TANK LOCK HUS-503578901
...
501819602
TANK CAP HUS-537215207
...
503084601
SPRING HUS-503084601
...
503484501
HANDLE HUS-537033401
