product name

Husqvarna 242 (1987-06) Chain Saw

Model: 242 (1987-06)

Back To Assemblies

Save Part Not Listed?
product name

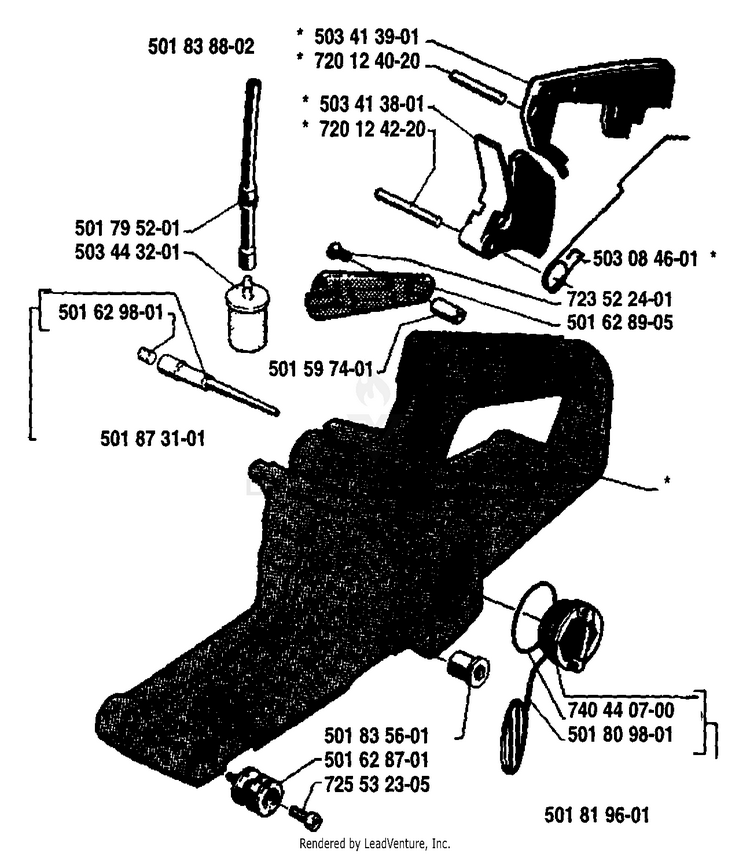

Tank Assembly

...
...
501838802
TANK UNIT CPL HUS-501838803
...
503413901
THROTTLE LOCK HUS-503413902
...
720124020
PIN HUS-720182520
...
503413801
THROTTLE LEVER HUS-503413802
...
720124220
PIN 3X30 HUS-720124220
...
501795201
FUEL HOSE HUS-501795201
...
503443201
KIT FUEL FILTER HUS-591375401
...
501629801
VALVE PLUG HUS-501629801
...
501597401
SPACER HUS-501597401
...
503084601
SPRING HUS-503084601
...
723522401
SCREW 3X10 HUS-724322405
...
501628905
HANDLE FILLER HUS-501628905
...
740440700
O-RING HUS-740440700
...
501809801
TANK LOCK HUS-503578901
...
501835601
ANTIVIBE ELEMENT HUS-501835601
...
501628701
ANTIVIBE ELEMENT HUS-501628701
...
725532305
SCREW MC6S 5X10 HUS-725532555
...
501819601
TANK CAP HUS-537215207
...
501873101
FUEL TANK VENT HUS-501873101
