Husqvarna 240 L (1998-11) Line Trimmer

Model: 240 L (1998-11)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

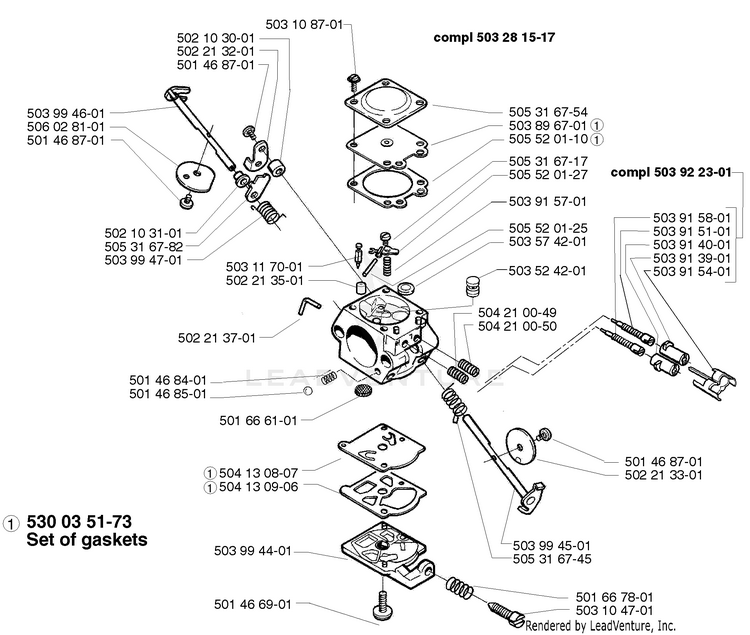

Carburetor Parts

...
...
503108701

...
502103001

...
502213201
LEVER, THROTTLE HUS-502213201

...
501468701

...
503994601
Choke Shaft HUS-503994601

...
506028101

...
501468701

...
502103101

...
505316782
STARTER LEVER HUS-505316782

...
503994701

...
503117001
VALVE/INLET. HUS-503117001

...
502213501

...
503281517
CARBURETOR WT-964-1 HUS-577133001

...
505316754
DIAPHRAGM COVER HUS-505316754

...
503896701
DIAPHRAGM HUS-503896701

...
505520110
GASKET, METERING SIDE HUS-505520110

...
505520127

...
505316717

...
503915701

...
505520125
FULCRUM PIN HUS-505520125

...
503574201
WELCH PLUG HUS-503574201

...
503524201

...
504210049
SPRING, H-NEEDLE HUS-504210049

...
503922301
LIMITER CAP & SCREW SET HUS-503922301

...
503915801

...
503915101
ADJUSTING SCREW HUS-503915101

...
503914001
LIMITER CAP HUS-503914001

...
503913901
LIMITER CAP HUS-503913901

...
503915401

...
504210050
NEEDLE SPRING HUS-530035293

...
501468701

...
502213301
Throttle Flap HUS-502213301

...
503994501

...
505316745

...
501667801
IDLE SCREW SPRING HUS-530035121

...
503104701

...
502213701
FUEL LINE FITTING HUS-502213701

...
501468401

...
501468501

...
501666101
FUEL INLET SCREEN HUS-501666101

...
504130807
PUMP DIAPHRAGM HUS-504130807

...
504130906

...
503994401

...
501466901

...
530035173
GASKET/DIAPHRAGM KIT HUS-530069844
...
...
...
