Husqvarna 240 E TRIOBRAKE (20102300001-Current) Chain Saw

Model: 240 E TRIOBRAKE (20102300001-Current)

Save
Part Not Listed?Part Not Listed?
product name

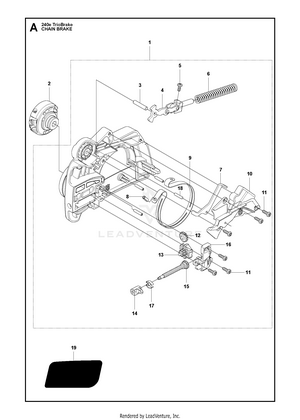

CHAIN BRAKE

...
...
12
GEAR IDLER HUS-545060201

...
14
PIN BAR ADJUSTING EZT HUS-574201701

...
1
ASSY CHAIN BRAKE TRIO HUS-574221901

...

...

...
2
KNOB ASSY HUS-579070601



...
16
COVER, GEAR HUS-545059201

...
11
SCREW 6-19X.437 HUS-545227101

...
5
SCREW M3.63-1.34 X 8MM HUS-574780301

...
19
DECAL, EZT CLUTCH HUS-545118601

...



...
18
PIN DOWEL HUS-545215301

...
13
ADJUSTMENT WHEEL HUS-525884201


...
9
BRAKE BAND HUS-530057923

FUEL TANK & HANDLE

...
...
4
VENT,FUEL TANK 36/41 HUS-530029868

...
10
SCREW,FRONT HBAR 36/41 HUS-530015906

...
11

...
12

...
6
KIT.LINE TANK/PURGE HUS-530069216

...
3

...
9
ASSY TANK CAP GREY HUS-544111203

...
7
FUEL LINE FITTING HUS-530023877

...
1
CHASSIS ASSY HUS-525527401

...
8
ISOLATOR FILTER HOUSING HUS-545061901

...
5
VALVE-CHECK (DUCKBILL) HUS-530026119

...
13
ASSY FUEL PICKUP PRE FLUSHED HUS-577167201

...
2

...
14
FUEL LINE HUS-545078302

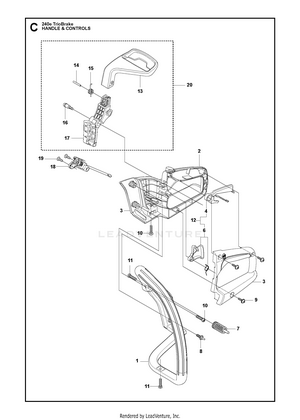

HANDLE & CONTROLS

...
...
16
SCREW SHOULDER HUS-545224101

...
7
SPRING CYLINDER ASSY HUS-545033901

...
12
TRIGGER & LOCKOUT KIT HUS-578862201

...
13
HAND GUARD HUS-545215001

...
11
SCREW M5.38-14X22.225MM HUS-530016432

...
20
REAR HANDGUARD ASSY HUS-545121201

...
4
LOCKOUT - THROTTLE HUS-545062601

...
17
PIVOTING ARM HUS-545214901

...
19
SCREW 6-19X.437 HUS-545227101


...
3
COVER REAR HANDLE HUS-545062302

...
2
REAR HANDLE HUS-545215401

...
10
SCREW FILTER PLATE HUS-530016349

...
14
GROOVED PIN HUS-721121330

...
18
CABLE ASSY HUS-545215101

...
15

...
1
FRONT HANDLE HUS-545062401

...
6
TRIGGER & SPRING ASSY HUS-545121501

...
...
...
