product name

Husqvarna 240 (20091400001-20101400000) Chain Saw

Model: 240 (20091400001-20101400000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

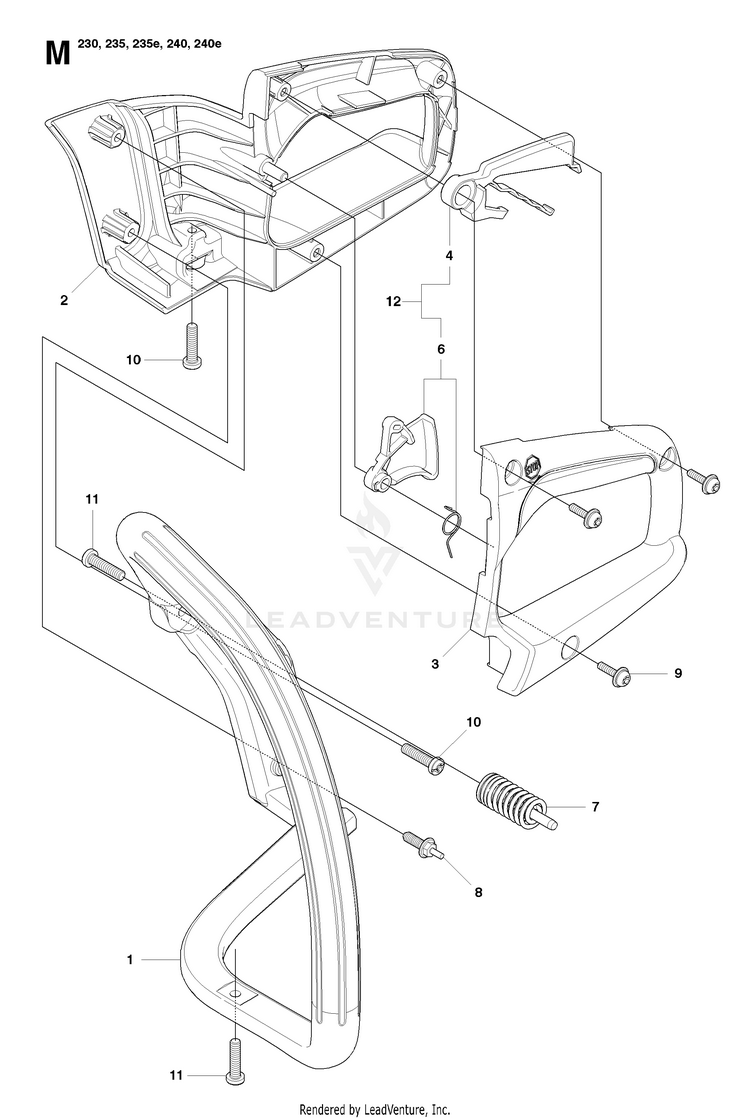

HANDLE & CONTROLS

...
...
2
REAR HANDLE HUS-545062201
...
1
FRONT HANDLE HUS-545062401
...
10
SCREW FILTER PLATE HUS-530016349
...
4
LOCKOUT - THROTTLE HUS-545062601
...
2
REAR HANDLE HUS-545062202
...
3
REAR HANDLE COVER HUS-545062301
...
8
SCREW HUS-545076301
...
11
SCREW M5.38-14X22.225MM HUS-530016432
...
6
TRIGGER & SPRING ASSY HUS-545121501
...
9
SCREW HUS-530016433
...
3
COVER REAR HANDLE HUS-545062302
...
12
TRIGGER & LOCKOUT KIT HUS-578862201
...
7
SPRING CYLINDER ASSY HUS-545033901
...
...
...
...
...
