Husqvarna 240 (20091400001-20101400000) Chain Saw

Model: 240 (20091400001-20101400000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

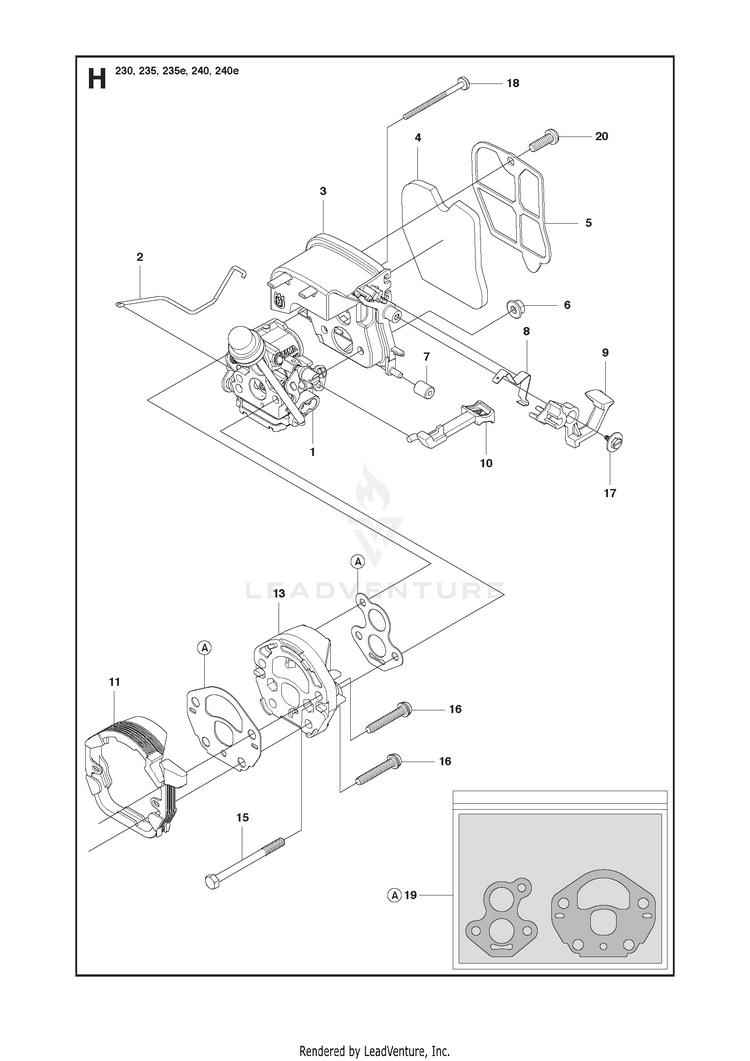

CARBURETOR & AIR FILTER

...
...
5
PLATE HUS-545151801
...
3
AIR FILTER HOUSING BLACK HUS-575493401
...
2
TRIGGER & LOCKOUT KIT HUS-578862301
...
9
SWITCH LEVER HUS-545061701
...
1
CARBURETTOR 14MM AIR BORE, ANG HUS-586936202
...
15
STUD CARBURETOR HUS-545033701
...
6
NUT HUS-530016101
...
17
SCREW HUS-530016080
...
20
SCREW FILTER PLATE HUS-530016349
...
8
SPRING HUS-545063401
...
13
ADAPTOR CARBURETOR HUS-577636501
...
11
CARB ADAPTOR SEAL HUS-545061501
...
16
SCREW HUS-545158301
...
19
GASKET KIT HUS-545081892
...
7
ISOLATOR FILTER HOUSING HUS-545061901
...
10
CHOKE KNOB HUS-545061601
...
4
AIR FILTER HUS-545061801
...
18
TOP STUD - CARBURETOR HUS-545074901
...
...
...
...
...
