Husqvarna 240 (20091400001-20101400000) Chain Saw

Model: 240 (20091400001-20101400000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

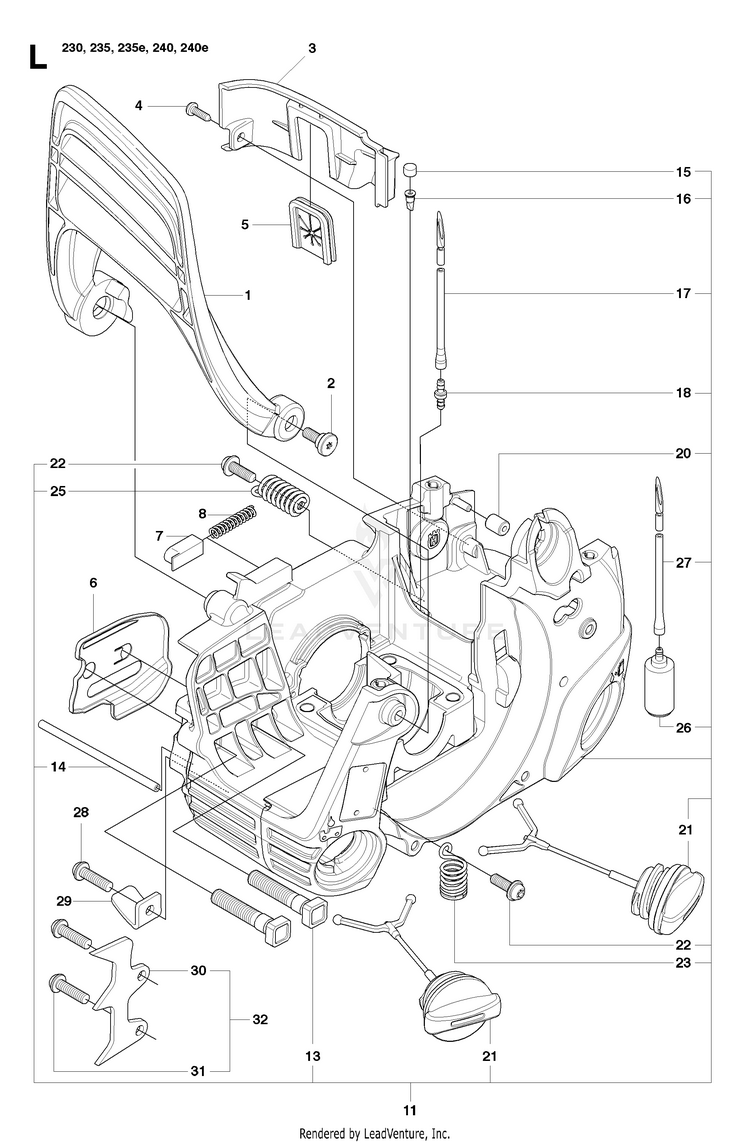

CHASSIS & ENCLOSURES

...
...
14
OIL TUBE HUS-545033501
...
11
CHASSIS HUS-579665204
...
1
HAND GUARD HUS-575636901
...
5
GROMMET HUS-545075401
...
31
SCREW HUS-530016439
...
30
SPIKE 36/41 HUS-530014381
...
13
BAR BOLT 36/41 HUS-530015877
...
21
FUEL CAP W/ RETAINER HUS-545070801
...
2
BOSS SCREW HUS-545127301
...
8
SPRING HUS-545071201
...
29
CHAIN CATCHER 36/41 HUS-530029850
...
23
ISOLATOR HUS-545033801
...
25
SPRING HUS-545063101
...
22
SCREW,FRONT HBAR 36/41 HUS-530015906
...
32
SPIKE 36/41 HUS-530014381
...
4
SCREW 6-19X.437 HUS-545227101
...
3
REAR WALL HUS-545061201
...
18
FUEL LINE FITTING HUS-530023877
...
17
KIT.LINE TANK/PURGE HUS-530069216
...
15
VENT,FUEL TANK 36/41 HUS-530029868
...
6
PLATE BAR HUS-545071401
...
20
ISOLATOR FILTER HOUSING HUS-545061901
...
27
FUEL LINE HUS-545078302
...
7
CAP, SPRING HANDGUARD HUS-545071301
...
28
SCREW HUS-530015814
...
16
VALVE-CHECK (DUCKBILL) HUS-530026119
...
26
ASSY FUEL PICKUP PRE FLUSHED HUS-577167201
...
...
...
...
...
