product name

Husqvarna 24 H (1985-01) Hedge Trimmer

Model: 24 H (1985-01)

Save
 Part Not Listed?Part Not Listed?
product name

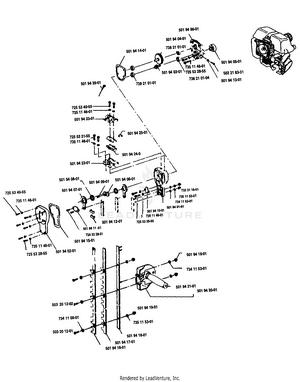

Gear Housing And Blade Assembly

...
...
501943901
HUS-501943901
...
725534055
SCREW MC6S 5X45 HUS-725534055
...
735114601
SPRING WASHER HUS-735114601
...
501942301
HUS-501942301
...
725533155
SCREW ITXSCM HUS-525824902
...
735114601
SPRING WASHER HUS-735114601
...
725534055
SCREW MC6S 5X45 HUS-725534055
...
735114601
SPRING WASHER HUS-735114601
...
501940801
CAM ROLLER HUS-501940801
...
501940701
CAM ROD HUS-501940701
...
501942201
HUS-501942201
...
735114601
SPRING WASHER HUS-735114601
...
725532855
SCREW MC6S 5X14 HUS-725532855
...
501940201
HUS-501940201
...
501941501
PACKING HUS-501941501
...
724332851
HUS-724332851
...
501941101
HUS-501941101
...
501941201
HUS-501941201
...
501940901
HUS-501940901
...
501940601
HUS-501940601
...
501942401
HUS-501942401
...
501941001
HUS-501941001
...
735114601
SPRING WASHER HUS-735114601
...
725533555
SCREW MC6S 5X30 HUS-725533555
...
503201202
STEP BOLT (L) HUS-503201202
...
734225601
HUS-734225601
...
503201201
STEP BOLT(S) HUS-503201201
...
501941901
NUT FLANGE - M6 HUS-732251601
...
735115301
SPRING WASHER HUS-735115301
...
501941801
HUS-501941801
...
501941701
CUTTER B HUS-501941701
...
501941601
CUTTER A HUS-501941601
...
501941901
NUT FLANGE - M6 HUS-732251601
...
734115301
Washer HUS-734115301
...
732311601
HUS-732311601
...
735115301
SPRING WASHER HUS-735115301
...
734115301
Washer HUS-734115301
...
501940101
HUS-501940101
...
501942501
HUS-501942501
...
738210101
BEARING HUS-530032125
...
738210101
BEARING HUS-530032125
...
501940301
HUS-501940301
...
735114601
SPRING WASHER HUS-735114601
...
725532855
SCREW MC6S 5X14 HUS-725532855
...
738210104
BALL BEARING HUS-738210104
...
501940501
HUS-501940501
...
501941301
Plain Washer (M6) HUS-501941301
...
503218331
Screw 6x10 HUS-503218331
...
501941401
HUS-501941401
...
501940401
HUS-501940401
...
501940001
HUS-501940001
...
501942101
HUS-501942101
...
501942001
HUS-501942001

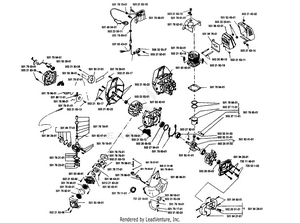

General Assembly

...
...
501790401
Starter Rope HUS-5017904-01
...
501933801
HUS-501933801
...
501790301
HUS-501790301
...
503218339
HUS-503218339
...
503218338
Screw HUS-5032183-38
...
501933601
HUS-501933601
...
501789701
HUS-501789701
...
501789601
HUS-501789601
...
501891101
HUS-501891101
...
501789801
HUS-501789801
...
501790101
HUS-501790101
...
503218313
HUS-503218313
...
501947701
HUS-501947701
...
501943901
HUS-501943901
...
501792101
REPAIR KIT HUS-501950801
...
501792301
Diaphragm Cover Compl HUS-501792301
...
501934601
HUS-501934601
...
503218346
HUS-503218346
...
501788401
Filter Holder HUS-501788401
...
501788301
FILTER ELEMENT HUS-501788301
...
501788201
SCREEN HUS-501788201
...
503218306
Screw 4x25 HUS-503218306
...
501944401
HUS-501944401
...
501321832
HUS-501321832
...
501934501
HUS-501934501
...
501791101
TANK CAP HUS-502192101
...
501934801
HUS-501934801
...
501934701
HUS-501934701
...
501791901
HUS-501791901
...
501787501
HUS-501787501
...
501787601
HUS-501787601
...
503218319
SCREW 5 X 23 HUS-502169901
...
501790801
PIPE HUS-501787801
...
501787701
HUS-501787701
...
501790601
FUEL HOSE HUS-501790601
...
503218317
SCREW NLA HUS-502185101
...
503218322
SCREW 5X30 HUS-503218322
...
501791801
HUS-501791801
...
501933701
HUS-501933701
...
501785901
HUS-501785901
...
503218317
SCREW NLA HUS-502185101
...
501934301
HUS-501934301
...
501786901
HUS-501786901
...
501787001
HUS-501787001
...
501485401
SPARK PLUG CONN. KIT HUS-501485402
...
503235011
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
503218318
Screw W/Washer 5x20 HUS-5032183-18
...
501786801
HUS-501786801
...
503218315
HUS-503218315
...
501786101
HUS-501786101
...
501786201
HUS-501786201
...
501786301
HUS-501786301
...
503218318
Screw W/Washer 5x20 HUS-5032183-18
...
505325539
IGNITION HUS-505325539
...
503218301
HUS-503218301
...
503218322
SCREW 5X30 HUS-503218322
...
503220201
Flange Nut HUS-5032202-01
...
501934201
HUS-501934201
...
501785901
HUS-501785901
...
503218312
HUS-503218312
...
503260502
HUS-503260502
...
503227040
HUS-503227040
...
501786001
HUS-501786001
...
501790701
PIPE CLIP HUS-501790701
...
501790501
PRIMER PUMP HUS-501790501
...
505315148
KIT FUEL FILTER HUS-591375401
...
501790901
HUS-501790901
...
501884601
HUS-501884601
...
501934101
HUS-501934101
...
731231401
NUT HUS-731231401
...
501885801
HUS-501885801
...
503218339
HUS-503218339
...
501791601
HUS-501791601
...
501791701
HUS-501791701
...
503218320
Screw 5x25 HUS-5032183-20
...
501946501
HUS-501946501
...
503205101
HUS-503205101
...
501942801
HUS-501942801
...
501942701
HUS-501942701
...
503260503
Sealing Ring HUS-5032605-03
...
732553155
HUS-732553155
...
735114601
SPRING WASHER HUS-735114601
...
501942601
HUS-501942601
...
501934101
HUS-501934101
...
503250103
Ball Bearing HUS-503250103
...
503253101
NEEDLE BEARING HUS-503253101
...
503250103
Ball Bearing HUS-503250103
...
503271101
Retaining Ring HUS-5032711-01
...
501786601
PISTON RING HUS-501786601
...
503271101
Retaining Ring HUS-5032711-01
...
501786501
PISTON CPL HUS-501949401
...
503278201
HUS-503278201
...
501786401
HUS-501786401
...
503218318
Screw W/Washer 5x20 HUS-5032183-18
...
503208015
HUS-503208015
...
501934001
HUS-501934001
...
503218311
Screw 5x8 HUS-5032183-11
...
503218314
HUS-503218314
...
501947601
HUS-501947601
...
501884201
HUS-501884201
...
503222001
STOVER NUT M5 HUS-503222001
...
501934901
HUS-501934901
...
503218302
HUS-503218302

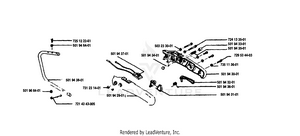

Handle Assembly

...
...
725122261
HUS-725122261
...
501946401
HUS-501946401
...
501966401
HUS-501966401
...
501943801
HUS-501943801
...
731231401
NUT HUS-731231401
...
501942901
HUS-501942901
...
721434305
HUS-721434305
...
501943301
HUS-501943301
...
501943501
HUS-501943501
...
729534403
HUS-729534401
...
735113601
SPRING WASHER 4.1X7.1 HUS-735113601
...
501943001
HUS-501943001
...
501943201
HUS-501943201
...
501943601
HUS-501943601
...
501943101
LEVER 26H HUS-531003094
...
503233001
HUS-503233001
...
501943101
LEVER 26H HUS-531003094
...
501943701
STOP SWITCH HUS-502192501
...
...
...
