Husqvarna 238 (1987-04) Chain Saw

Model: 238 (1987-04)

Back To Assemblies

Save Part Not Listed?
product name

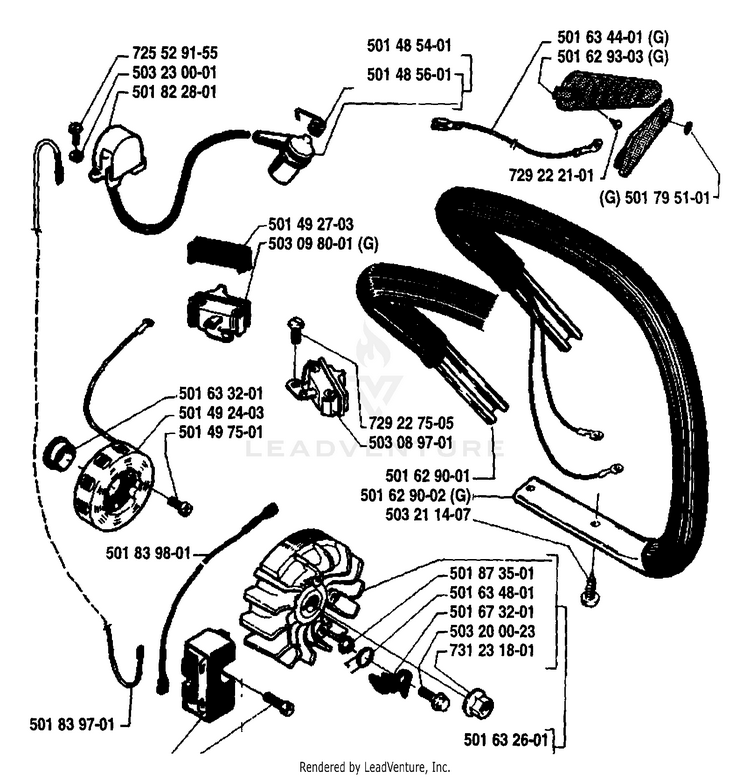

Ignition / Flywheel

...
...
725529155
SCREW MC6S 4X12 HUS-725529155
...
503230001
WASHER 4.2X9 HUS-503230001
...
501822801
HUS-501822801
...
501485401
SPARK PLUG CONN. KIT HUS-501485402
...
501485601
SPARK PLUG CONN. KIT HUS-501485402
...
501492703
COVER HUS-501492703
...
503098001
SWITCH HUS-503718101
...
501633201
HUS-501633201
...
501492403
GENERATOR HUS-501492403
...
501497501
HUS-501497501
...
501839801
SHORTING LEAD HUS-501839801
...
729227505
SCREW HUS-503212806
...
503089701
SWITCH ON/OFF HUS-503717901
...
501629001
FRONT HANDLE HUS-501629003
...
501629002
FRONT HANDLE G HUS-501629004
...
503211407
Screws HUS-503214974
...
501873501
CHAIN GUIDE PLATE HUS-501873501
...
501634801
SPRING HUS-501634801
...
501673201
PAWL HUS-501673201
...
503200023
BOLT M6SF 5X14 HUS-503200023
...
731231801
NUT HUS-731231801
...
501632601
FLYWHEEL HUS-503730601
...
501839701
LEAD HUS-501839701
...
501634401
CABLE HUS-501634401
...
501629303
HANDLE CIRCUIT HUS-501629305
...
501795101
COVER WASHER HUS-501795101
...
729222101
SCREW CSK B4X6 HUS-729222101
