Husqvarna 238 (1987-04) Chain Saw

Model: 238 (1987-04)

Back To Assemblies

Save Part Not Listed?
product name

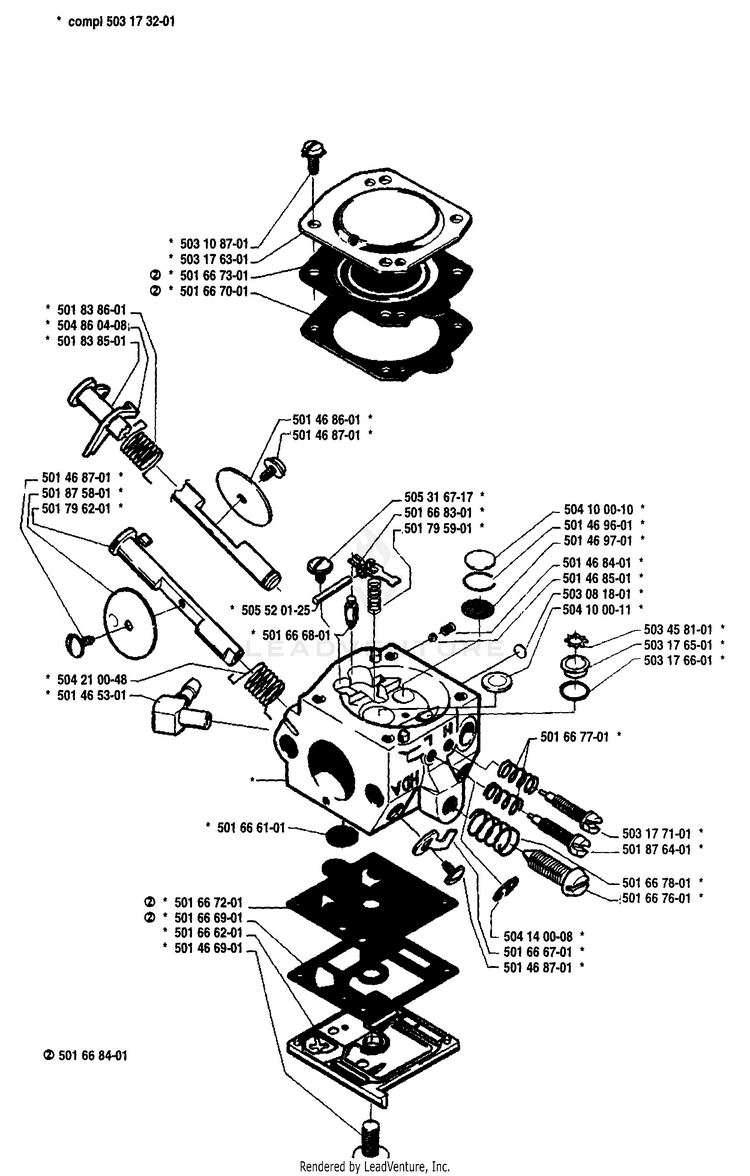

Carburetor Parts

...
...
503108701
SCREW HUS-503584601
...
503176301
COVER METERING DIAPHR. HUS-503176301
...
501667301
METERING DIAPHRAGM HUS-501667301
...
501667001
GASKET, METERING SIDE HUS-501667001
...
501838601
HUS-501838601
...
504860408
LEVER HUS-537158201
...
501838501
HUS-501838501
...
501468701
SCREW HUS-501468701
...
501875801
Throttle Flap HUS-501875801
...
501796201
HUS-501796201
...
504210048
THROTTLE SPRING HUS-504210048
...
501465301
HUS-501465301
...
505520125
FULCRUM PIN HUS-505520125
...
501666801
INLET NEEDLE HUS-503563401
...
501468701
SCREW HUS-501468701
...
501468601
SHUTTER-CHOKE HUS-507430749
...
505316717
SCREW HUS-505316717
...
501668301
LEVER HUS-501668301
...
501795901
SPRING HUS-501795901
...
504100010
CUP PLUG HUS-530035225
...
501469601
HUS-501469502
...
501469701
CHECK VALVE SCREEN HUS-530035124
...
501468401
SPRING HUS-501468401
...
501468501
BALL HUS-501468501
...
503081801
Washer HUS-503081801
...
504100011
WELCH PLUG HUS-503574201
...
503458101
HUS-503458101
...
503176501
HUS-503176501
...
503176601
REPAIR KIT CARBURETOR HUS-503592750
...
501667701
SPRING HUS-501667701
...
503177101
Needle High Speed HUS-503177101
...
501876401
NEEDLE IDLE HUS-501876401
...
501667801
IDLE SCREW SPRING HUS-530035121
...
501667601
Screw HUS-501667601
...
501666701
THROTTLE STOP HUS-501666701
...
501468701
SCREW HUS-501468701
...
504140008
RING SHAFT RETAINER HUS-504140008
...
501668401
REPAIR KIT DIAPHRAGM SET HUS-501668401
...
501667201
PUMP DIAPHRAGM HUS-502254701
...
501666901
GASKET, PUMP SIDE HUS-501666901
...
501666201
COVER, PUMP SIDE HUS-501666201
...
501466901
SCREW HUS-501466901
...
501666101
FUEL INLET SCREEN HUS-501666101
...
503173201
CARBURETOR CPL HDA-98 WALBRO HUS-503281019
