Husqvarna 236 E Chain Saw

Model: 236 E

Back To Assemblies

Save Part Not Listed?
product name

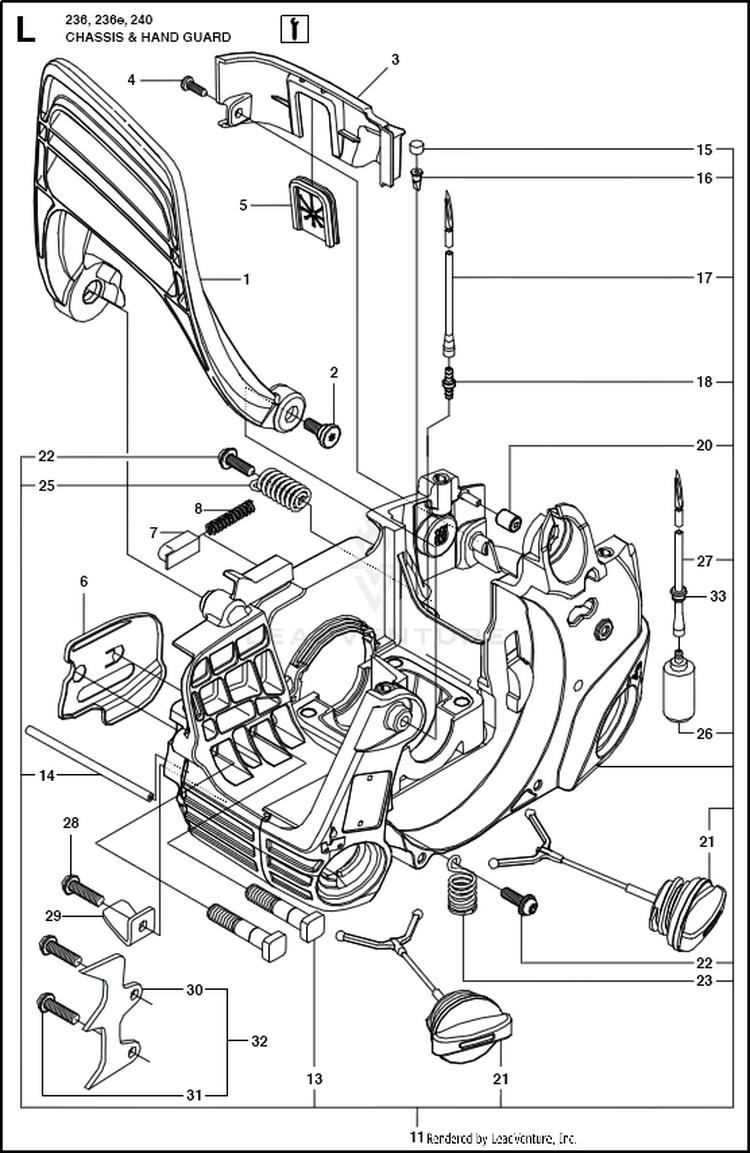

CHASSIS

...
...
32
SPIKE 36/41 HUS-530014381
...
2
BOSS SCREW HUS-545127301
...
21
ASSY TANK CAP GREY HUS-544111203
...
11
CHASSIS From 20101400001 up to 20180500000 HUS-579665204
...
6
PLATE BAR HUS-545071401
...
33
GROMMET FUEL LINE From 20180500001 HUS-580457501
...
23
ISOLATOR HUS-545033801
...
11
CHASSIS From 20180500001 HUS-587026804
...
26
FUEL PICK-UP ASSY From 20101400001 up to 20180500000 HUS-530095646
...
5
GROMMET HUS-545075401
...
7
CAP, SPRING HANDGUARD HUS-545071301
...
16
VALVE-CHECK (DUCKBILL) HUS-530026119
...
14
OIL TUBE From 20101400001 up to 20180500000 HUS-545033501
...
28
SCREW HUS-530015814
...
18
FUEL LINE FITTING HUS-530023877
...
26
ASSY FUEL PICKUP PRE FLUSHED From 20180500001 HUS-577167201
...
1
HANDGUARD HUS-577611902
...
17
KIT.LINE TANK/PURGE From 20101400001 up to 20180500000 HUS-530069216
...
15
VENT,FUEL TANK 36/41 HUS-530029868
...
27
FUEL LINE From 20101400001 up to 20180500000 HUS-545078302
...
22
SCREW,FRONT HBAR 36/41 HUS-530015906
...
4
SCREW 6-19X.437 HUS-545227101
...
27
KIT FUEL LINE From 20180500001 HUS-580727101
...
29
CHAIN CATCHER 36/41 HUS-530029850
...
26
NEEDS DESCRIPTION 30 pcs, plastic bag of 530095646 HUS-530095601
...
31
SCREW HUS-530016439
...
30
SPIKE 36/41 HUS-530014381
...
13
BAR BOLT HUS-529310302
...
8
SPRING HUS-545071201
...
17
KIT FUEL LINE From 20180500001 HUS-580727101
...
3
REAR WALL HUS-545061201
...
20
ISOLATOR FILTER HOUSING HUS-545061901
...
14
KIT FUEL LINE From 20180500001 HUS-580727101
...
25
SPRING HUS-545063101
