Husqvarna 236 E Chain Saw

Model: 236 E

Back To Assemblies

Save Part Not Listed?

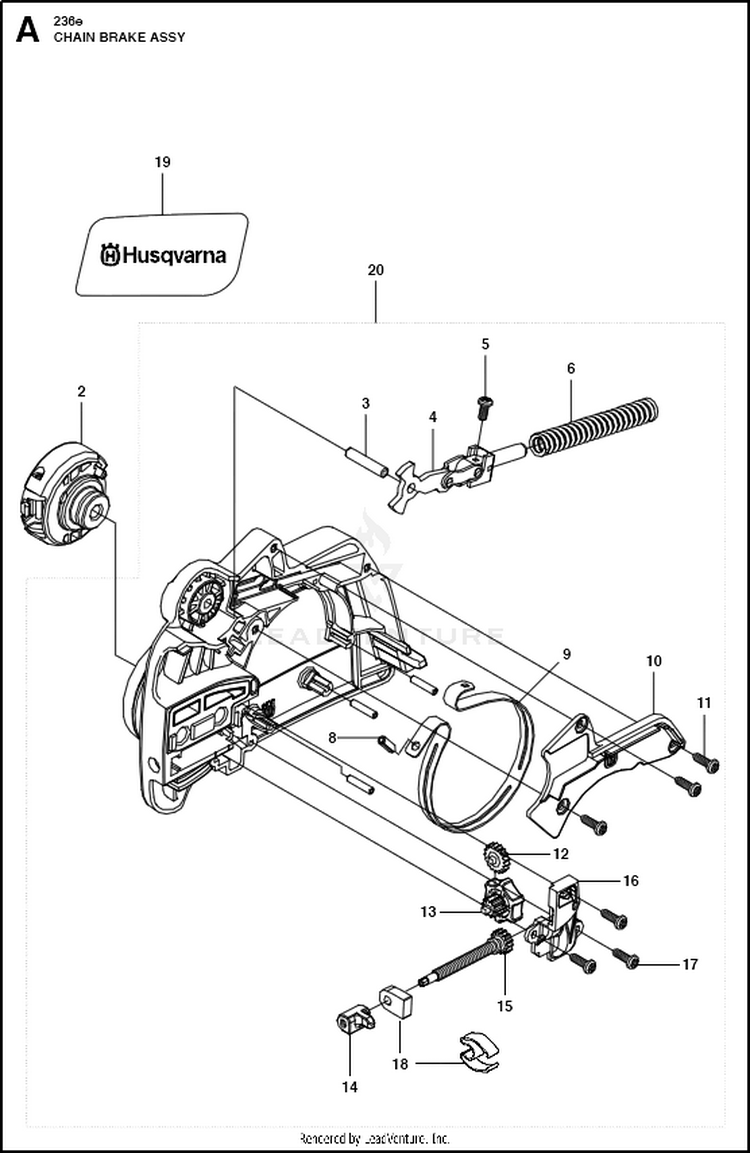

product name

CHAIN BRAKE

...
...
19
DECAL, EZT CLUTCH HUS-545118601
...
8
PIN HUS-530015913
...
3
PIN HUS-530057950
...
11
SCREW 6-19X.437 HUS-545227101
...
12
GEAR IDLER HUS-545060201
...
16
COVER, GEAR HUS-545059201
...
2
KNOB ASSY HUS-579070601
...
13
ADJUSTMENT WHEEL HUS-525884201
...
18
CLIP From 20101400001 up to 20180500000 HUS-545149301
...
4
FRONT LINK ASSY HUS-530057940
...
6
SPRING HUS-530016415
...
14
PIN BAR ADJUSTING EZT HUS-574201701
...
10
COVER CHAIN BRAKE GRAY HUSQ From 20180500001 HUS-525743001
...
20
CHAINBRAKE ASSY HUSQ ORANGE HUS-525611401
...
10
COVER, BRAKE BAND From 20101400001 up to 20180500000 HUS-545071001
...
18
BEARING SLEEVE From 20180500001 HUS-525354301
...
9
BRAKE BAND HUS-530057923
...
5
SCREW M3.63-1.34 X 8MM HUS-574780301
...
17
SCREW 6-19X.437 HUS-545227101
...
15
SCREW HUS-545065901
