Husqvarna 236 E Chain Saw

Model: 236 E

Back To Assemblies

Save Part Not Listed?
product name

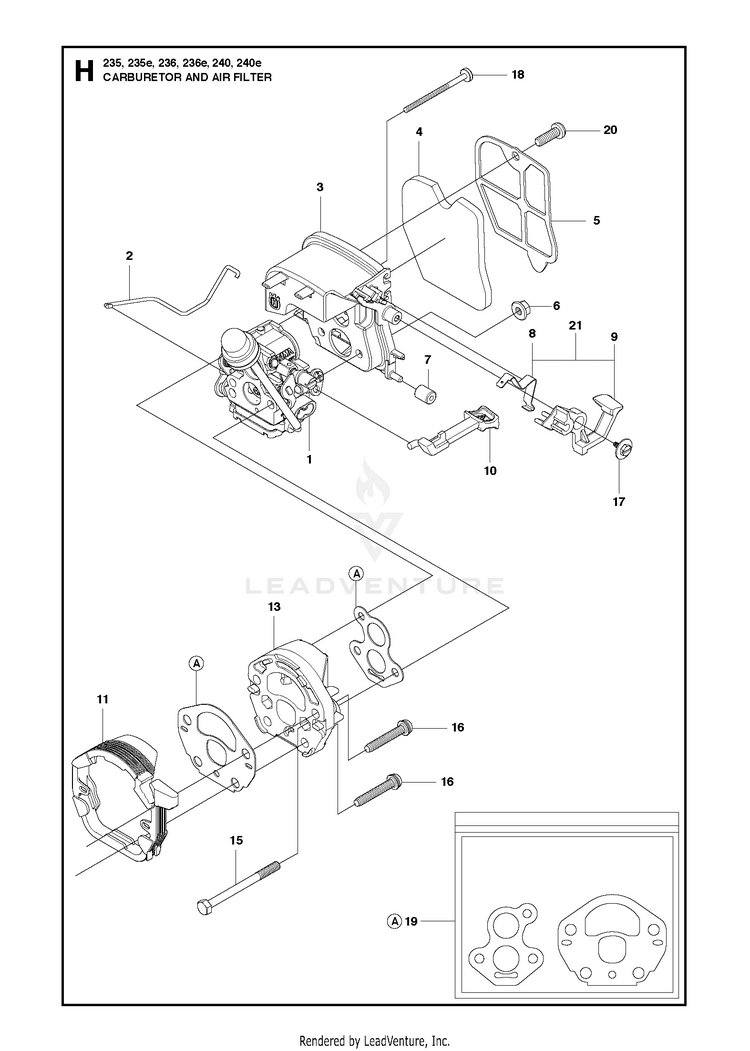

CARBURETOR & AIR FILTER

...
...
17
SCREW ROPE RETAINER HUS-530016080
...
6
NUT HUS-530016101
...
18
TOP STUD - CARBURETOR HUS-545074901
...
21
KIT SWITCH EU only HUS-577830701
...
2
THROTTLE WIRE From 20180500001 HUS-577815201
...
16
SCREW HUS-545158301
...
2
TRIGGER & LOCKOUT KIT From 20101400001 up to 20180500000 HUS-578862301
...
4
AIR FILTER HUS-545061801
...
9
SWITCH LEVER HUS-545061701
...
3
AIR FILTER HOUSING BLACK HOUSING HUS-575493401
...
13
ADAPTOR CARBURETOR HUS-577636501
...
1
CARBURETTOR 14MM AIR BORE, ANG HUS-586936202
...
10
CHOKE KNOB HUS-545061601
...
7
ISOLATOR FILTER HOUSING HUS-545061901
...
5
PLATE PLATE HUS-545151801
...
8
SPRING HUS-545063401
...
19
GASKET KIT HUS-545081892
...
20
SCREW FILTER PLATE HUS-530016349
...
11
CARB ADAPTOR SEAL HUS-545061501
...
15
STUD CARBURETOR HUS-545033701
