Husqvarna 236 E (20101400001-20180500000) Chain Saw

Model: 236 E (20101400001-20180500000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

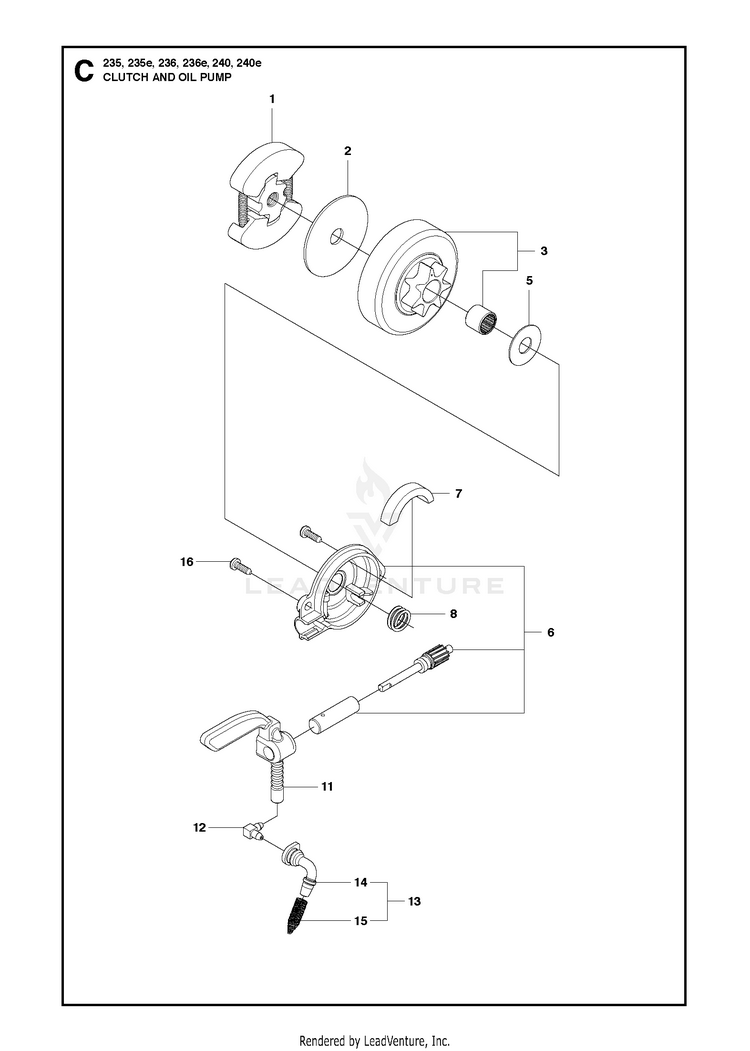

CLUTCH & OIL PUMP

...
...
1
CLUTCH ASSEMBLY HUS-530014949
...
3
CLUTCH DRUM ASSY 3/8 6-Tooth HUS-530047061
...
14
SEAL PICKUP HUS-545069401
...
5
THRUST WASHER HUS-530015907
...
15
SCREEN/FILTER HUS-530056533
...
6
OIL PUMP ASSY HUS-581063901
...
3
ASSY CLUTCH DRUM .325" .325 7-tooth HUS-530048132
...
16
SCREW 6-19X.437 HUS-545227101
...
13
PICK UPS ASSY OIL TANK HUS-545069501
...
2
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
12
ELBOW HUS-530049477
...
11
BLOCK OIL HUS-545227501
...
7
SEAL HUS-525318401
...
8
WORM GEAR HUS-530037820
...
...
...
...
...
