Husqvarna 236 E (20101400001-20180500000) Chain Saw

Model: 236 E (20101400001-20180500000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

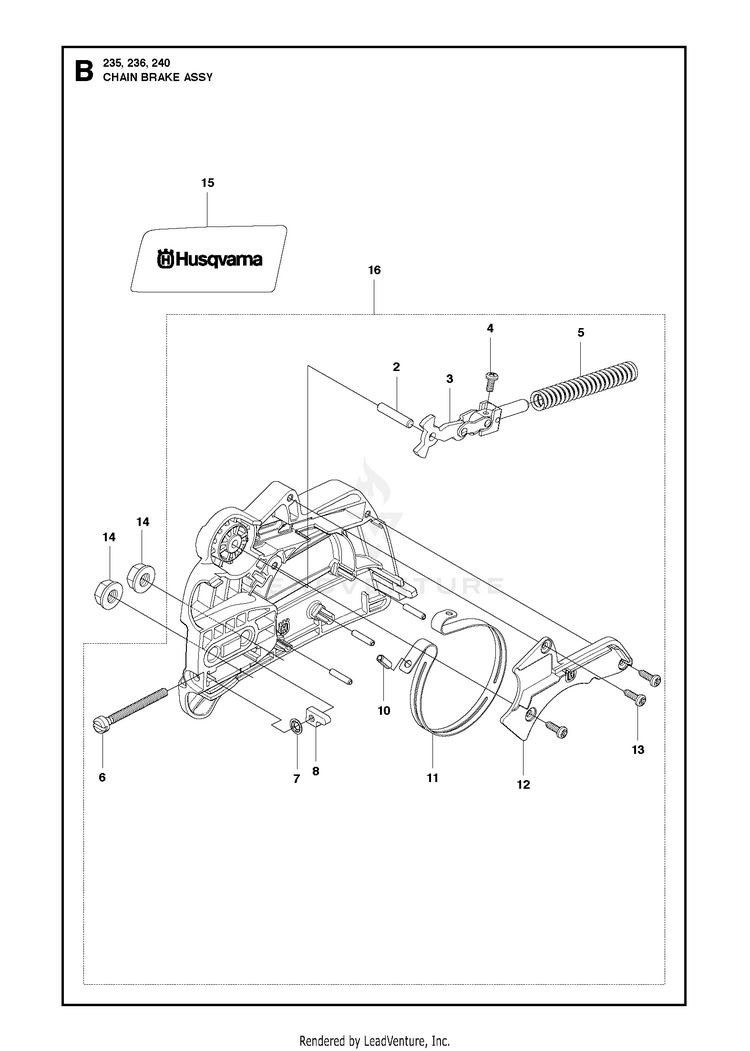

CHAIN BRAKE

...
...
12
COVER, BRAKE BAND HUS-545071001
...
10
PIN HUS-530015913
...
3
FRONT LINK ASSY HUS-530057940
...
8
ADJUST PIN,BAR 36/41 HUS-530015826
...
14
BAR NUT HUS-530015917
...
16
CHAIN BRAKE ASSY ORANGE HUS-525628901
...
6
BAR ADJUSTING SCREW HUS-530016110
...
4
SCREW M3.63-1.34 X 8MM HUS-574780301
...
7
RETAINER HUS-530038593
...
13
SCREW 6-19X.437 HUS-545227101
...
15
DECAL HUS-545118701
...
11
BRAKE BAND HUS-530057923
...
5
SPRING HUS-530016415
...
2
PIN HUS-530057950
...
...
...
...
...
