product name

Husqvarna 233 RJ Brushcutter/Clearing Saw

Model: 233 RJ

Back To Assemblies

Save Part Not Listed?
product name

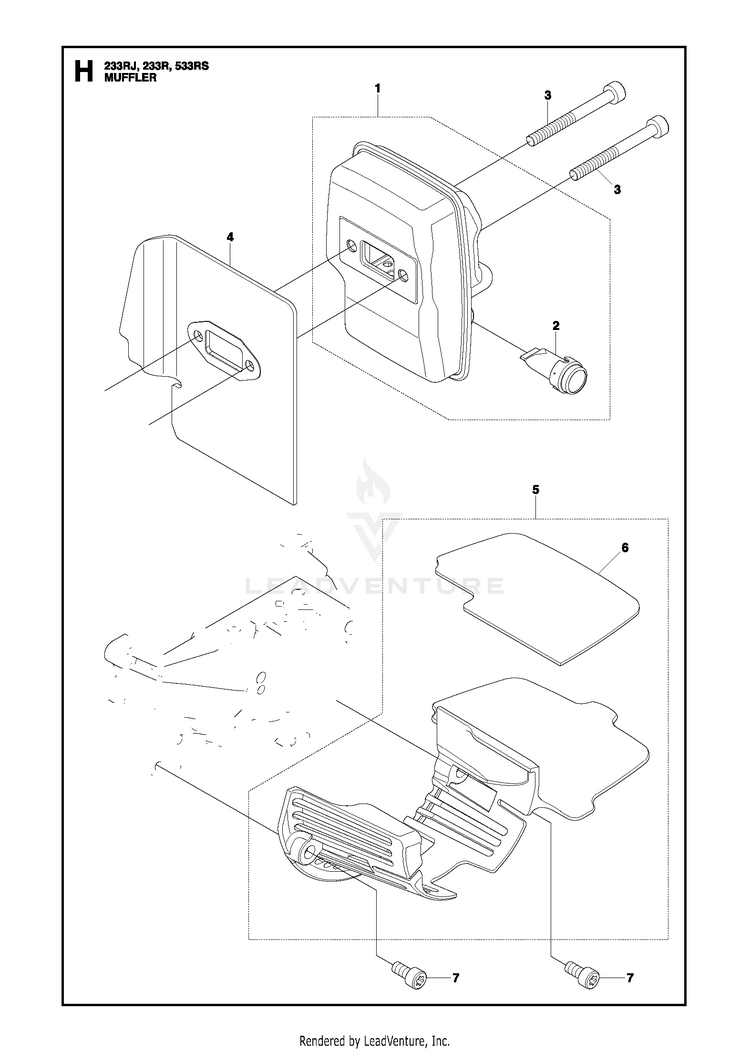

MUFFLER

...
...
5
PLATE-A HUS-521615201
...
7
BOLT 08 20112700001-Current HUS-504119601
...
6
SHEET HUS-521615401
...
4
GASKET HUS-528070301
...
3
BOLT HUS-504116501
...
2
ARRESTER 233RJ AUS HUS-506615601
...
1
MUFFLER 20112700001-Current, 233RJ AUS HUS-575584201
...
1
NEEDS DESCRIPTION 20112700001-Current, 233RJ, 233R, 533RS HUS-511386801
