Husqvarna 233 RJ Brushcutter/Clearing Saw

Model: 233 RJ

Back To Assemblies

Save Part Not Listed?
product name

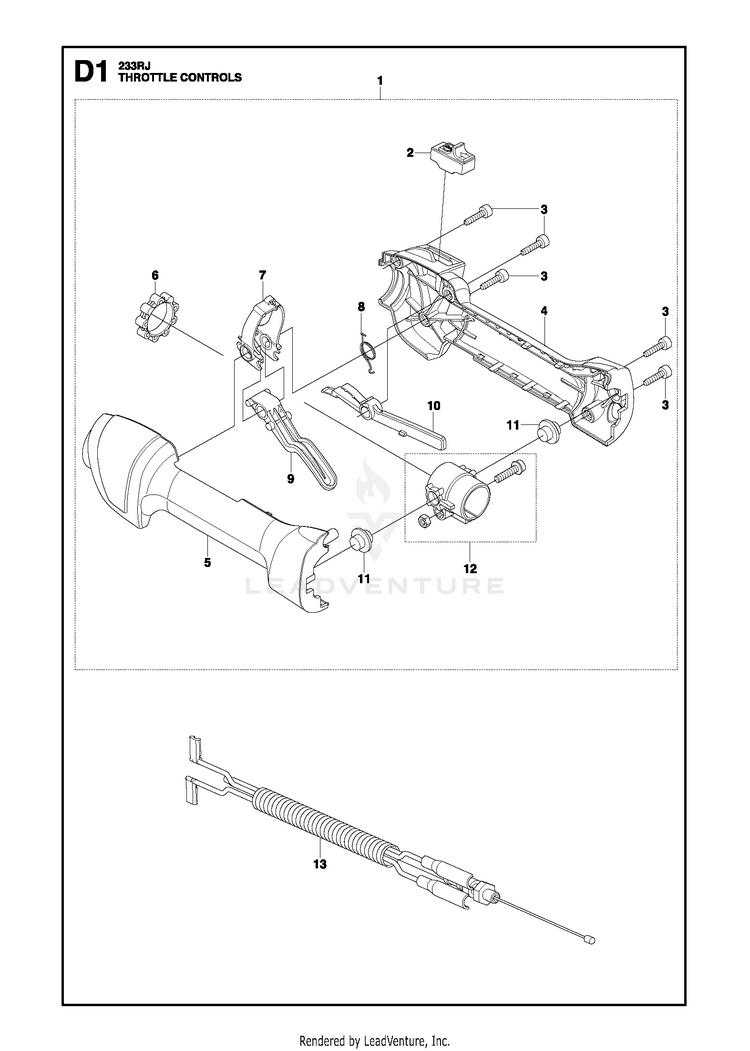

THROTTLE CONTROLS

...
...
6
VIBRATION DAMPER HUS-503961401
...
3
SCREW HUS-503216618
...
4
HANDLE HUS-544238401
...
11
NEEDS DESCRIPTION HUS-544101701
...
1
NEEDS DESCRIPTION HUS-522523801
...
10
THROTTLE LOCK HUS-503878001
...
7
LEVER HUS-503918101
...
12
RETAINER HUS-544211001
...
13
NEEDS DESCRIPTION HUS-522448801
...
8
RETURN SPRING HUS-544100801
...
2
START/STOP SWITCH HUS-503718201
...
9
THROTTLE TRIGGER HUS-503877903
...
5
HANDLE HUS-544238501
