Husqvarna 233 RJ Brushcutter/Clearing Saw

Model: 233 RJ

Back To Assemblies

Save Part Not Listed?
product name

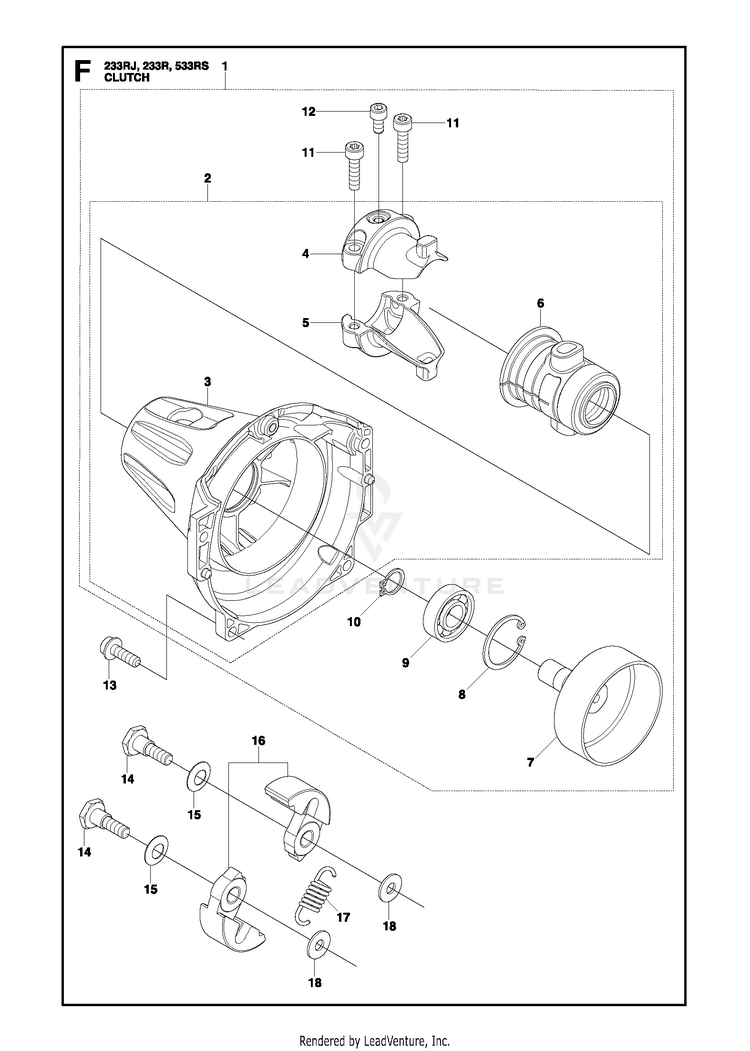

CLUTCH

...
...
15
WASHER HUS-513189501
...
9
BEARING HUS-525953201
...
7
DRUM (RPLS 481031120-22) HUS-521609801
...
8
RING HUS-506609901
...
18
WASHER HUS-505054401
...
16
SHOE-C HUS-515389101
...
14
SCREW HUS-513189601
...
4
BRACKET (A) (RPLS T170031211) HUS-521768201
...
13
BOLT HUS-515391301
...
5
BRACKET (B) HUS-521768301
...
17
SPRING HUS-515389301
...
6
CUSHION HUS-512360501
...
1
HOUSING ASSY HUS-528071001
...
10
RING HUS-516124101
...
11
BOLT TORX HUS-506689001
...
12
BOLT 20112700001-Current HUS-529268101
...
3
HOUSING HUS-521755201
...
2
T159031100000 HUS-570798201
