Husqvarna 233 RJ Brushcutter/Clearing Saw

Model: 233 RJ

Back To Assemblies

Save Part Not Listed?
product name

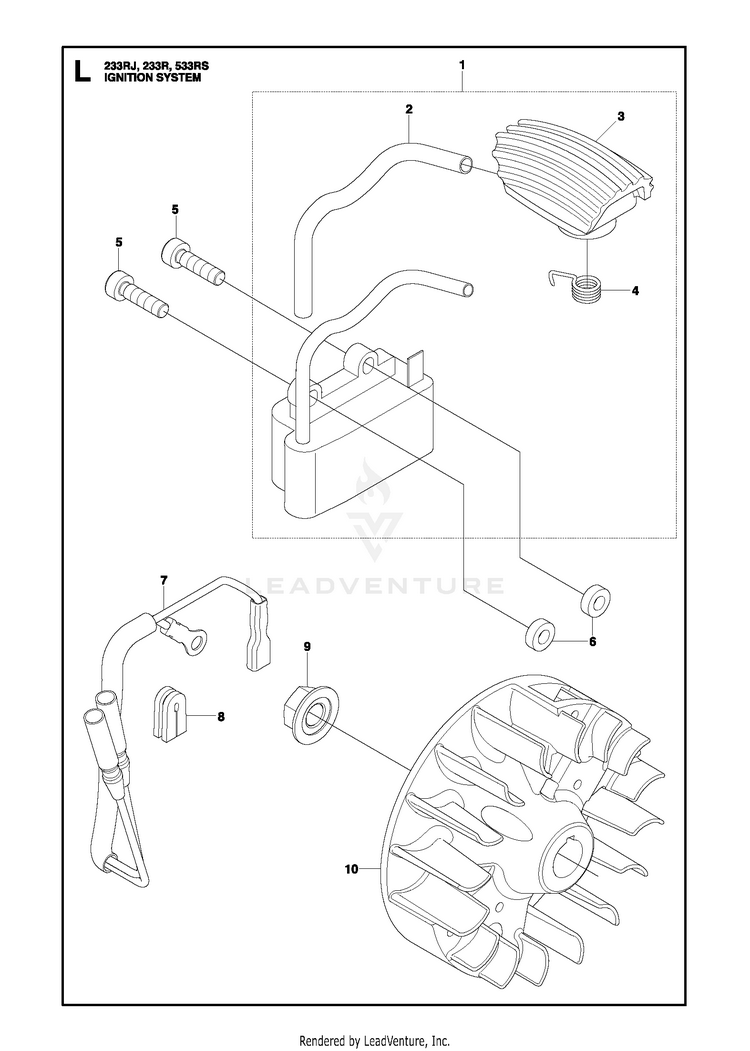

IGNITION SYSTEM

...
...
1
COIL 20140100001-Current HUS-574625301
...
6
SPACER HUS-504118601
...
3
CAP HUS-521610001
...
5
BOLT HUS-506745701
...
4
SPRING 20140100001-Current HUS-506655201
...
7
CORD-COMP HUS-512328601
...
10
ROTOR 20112700001-Current HUS-521769301
...
4
SPRING 20112700001-20140100000 HUS-515415201
...
2
TUBE 20112700001-20140100000 HUS-513764701
...
8
GROMMET HUS-506615901
...
10
COVER,TRF (RPLS 848F6012D1) 20090100001-20112700000 HUS-521614701
...
2
TUBE 20140100001-Current HUS-506618201
...
9
NUT(RPLS 1140-43230&182301) HUS-516437401
...
1
COIL-A 20090100001-20140100000 HUS-512332001
