Husqvarna 233 RJ Brushcutter/Clearing Saw

Model: 233 RJ

Back To Assemblies

Save Part Not Listed?
product name

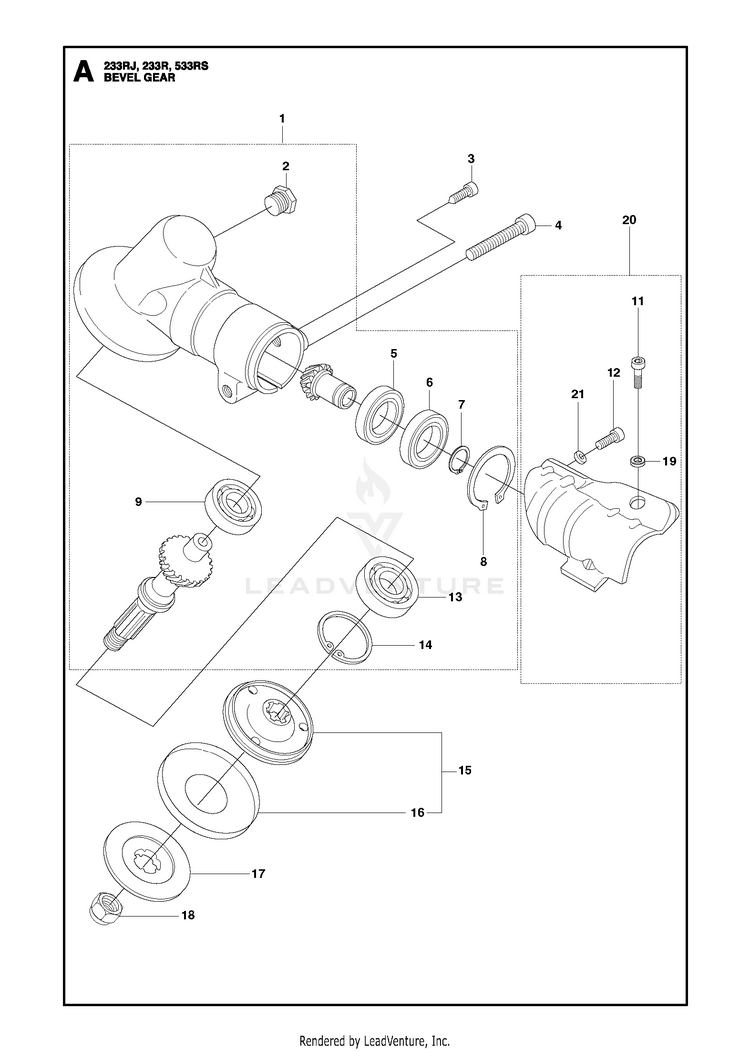

BEVEL GEAR

...
...
20
NEEDS DESCRIPTION HUS-575778701
...
18
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
13
BALL BEARING HUS-738210104
...
7
RETAINING RING HUS-735311100
...
16
DRIVE DISC HUS-537234901
...
21
LOCKING NUT HUS-574039501
...
5
BALL BEARING 24X9X1/609ZR HUS-738219900
...
4
BOLT Screw M5x25 HUS-512845901
...
12
SCREW HUS-503201412
...
15
DRIVE DISC HUS-537234901
...
14
RETAINING RING SGH 28 HUS-735312810
...
3
BOLT Screw M5x12 HUS-506745601
...
2
PLUG HUS-503201501
...
19
LOCKING NUT M6 HUS-574404401
...
11
SCREW IHSCM M6X22 10.9 ZN/FE Screw M6x20 HUS-503202007
...
1
GEARCASE-A HUS-537333202
...
6
BEARING HUS-738219902
...
17
SUPPORT FLANGE HUS-537285601
...
8
RETAINING RING HUS-735312510
...
9
BALL BEARING 8X22X7/608Z HUS-738219800
