Husqvarna 233 R (2011-07) Brushcutter/Clearing Saw

Model: 233 R (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

HANDLE

...
...
12
CAP-U HUS-505294901
...
1
BRACKET ASSY. HUS-521653201
...
13
BOLT TORX HUS-506689001
...
6
NUT HUS-731231401
...
5
PROTECTOR (RPLS 405017110) HUS-521538701
...
7
HANDLE HUS-537172802
...
9
BRACKET HUS-537172901
...
2
HANDLE(L) HUS-528817501
...
8
BOLT HUS-510909401
...
11
CAP-L HUS-514395601
...
4
HANDLE(R) HUS-528817401
...
10
BRACKET HUS-514395501
...
14
BOLT TORX HUS-512845701

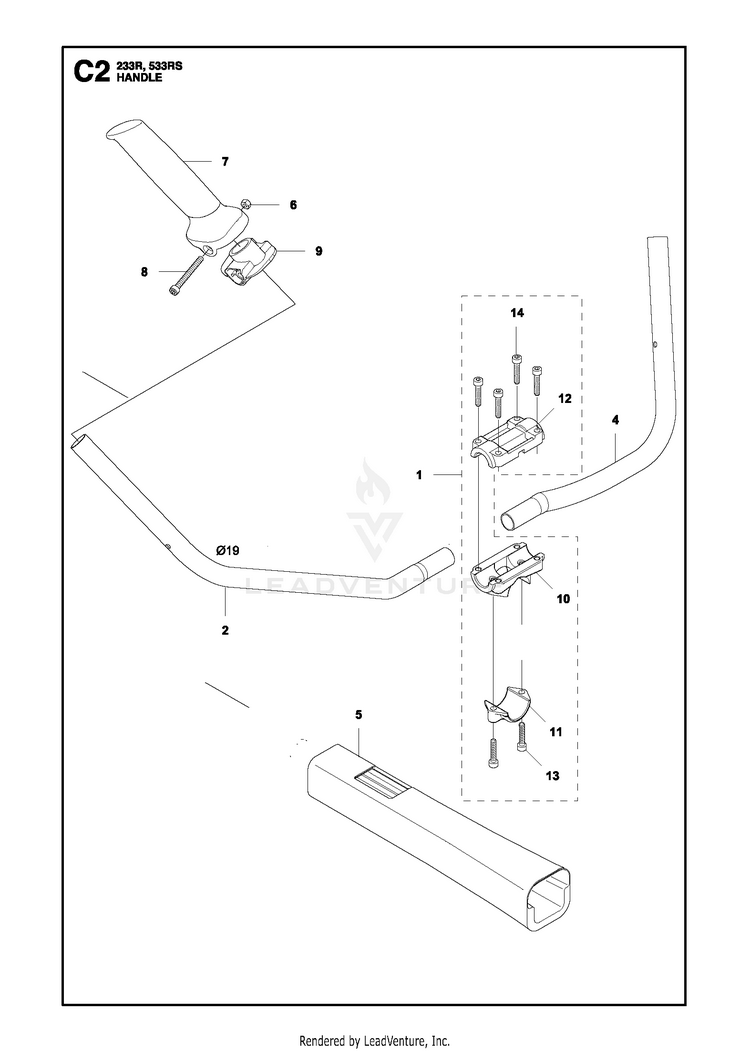

Schematic Image Zoomed
