Husqvarna 232 L (2006-04) Trimmer

Model: 232 L (2006-04)

Back To Assemblies

Save Part Not Listed?
product name

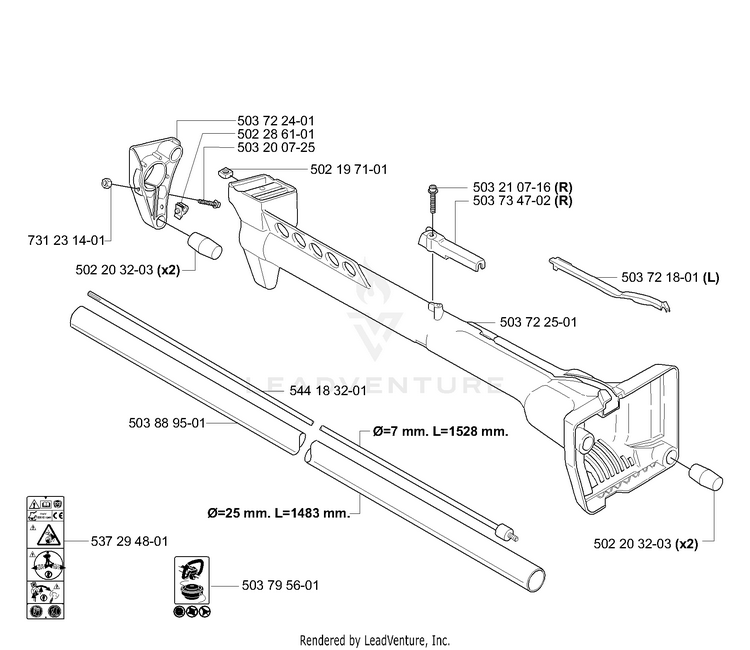

Shaft /Tube

...
...
502197101
NUT HUS-502197101
...
502203203
ABSORBER HUS-502203203
...
502286101
CLAMP HUS-502286101
...
503200725
SCREW HUS-503200725
...
503210716
SCREW HUS-503210716
...
503721801
COVER HUS-503721801
...
503722401
BRACKET HUS-503722401
...
503722501
HOUSING HUS-503722501
...
503734702
COVER HUS-503734702
...
503795601
DECAL WARNING "NO BLADES" HUS-503795601
...
503889501
TUBE HUS-503889501
...
537294801
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
544183201
SHAFT HUS-544183201
...
731231401
NUT HUS-731231401
