product name

Husqvarna 232 L (2000-10) Trimmer

Model: 232 L (2000-10)

Back To Assemblies

Save Part Not Listed?
product name

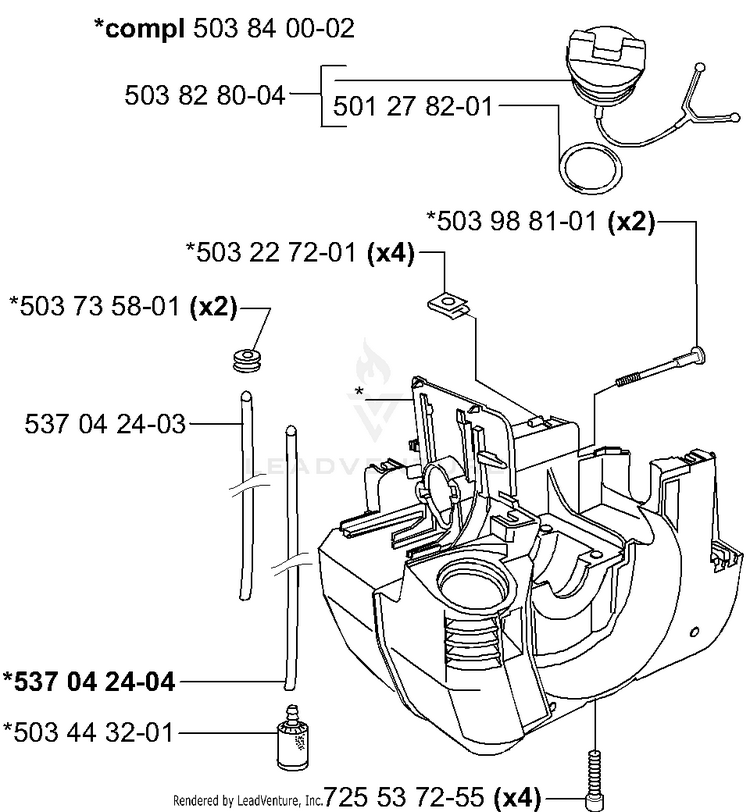

Fuel Tank / Crankcase

...
...
503840002
CRANKCASE COMPL HUS-503840002
...
503828004
FUEL CAP HUS-503828004
...
501278201
WASHER INCLUDED IN P/N 503828004 HUS-501278201
...
503988101
BOLT INCLUDED IN P/N 503840002 HUS-503988101
...
503227201
NUT INCLUDED IN P/N 503840002 HUS-503227201
...
503735801
FUEL TANK BUSHING INCLUDED IN P/N 503840002 HUS-503735801
...
537042403
FUEL HOSE/127MM HUS-537042403
...
537042404
FUEL HOSE INCLUDED IN P/N 503840002 HUS-581756114
...
503443201
KIT FUEL FILTER INCLUDED IN P/N 503840002 HUS-591375401
...
725537255
SCREW HUS-725537255
Schematic Image Zoomed
