Husqvarna 232 L (2000-10) Trimmer

Model: 232 L (2000-10)

Back To Assemblies

Save Part Not Listed?
product name

*Accessories

...
...
502114602
COMBINATION WRENCH COMBI TOOL INCLUDED IN P/N 502216001 HUS-531222001
...
501600203
SCREWDRIVER INCLUDED IN P/N 502216001 HUS-501600203
...
502285901
LOCKING PIN INCLUDED IN P/N 502216001 HUS-502285901
...
502035505
BLADE GUARD TRANSPORT HUS-537312901
...
502512701
HUS 7.9 OZ BEV GEAR GREASE(ST) HUS-596287601
...
502215801
L-KEY WRENCH INCLUDED IN P/N 502216001 HUS-502215801
...
502216001
TOOL KIT COMPL HUS-502216001
...
503736303
HUS STANDARD HARNESS COMPL HUS-596296801
...
503736304
HUS STANDARD HARNESS COMPL; USA HUS-596296801
...
502262301
TRANSPORT GUARD HUS-544359101
...
503734102
STRAP HUS-503734102
...
503734001
BUCKLE HUS-503734001
...
502022802
HOOK, CPL. HUS-502022802
...
503745301
TRANSPORT GUARD HUS-503745301
...
503741601
Harness - Diagonal with sign HUS-537216202
...
503741602
Harness - Diagonal with sign HUS-537216202
...
503776301
SUPPORT PLATE HUS-503776301
...
503744001
BLADE GUARD HUS-503744001
...
503895201
BLADE GUARD HUS-503895201
...
503745004
GRASS SHIELD HUS-503745004
...
503773901
ADAPTER HUS-501320402
...
503724901
ADAPTER INCLUDED IN P/N 503773901 HUS-503724901
...
503776301
SUPPORT PLATE INCLUDED IN P/N 503745004 HUS-503776301
...
503742901
DECAL INCLUDED IN P/N 503745004 HUS-503742901
...
503210716
SCREW INCLUDED IN P/N 503745004 HUS-503210716
...
503798801
BLADE INCLUDED IN P/N 503745004 HUS-503798802

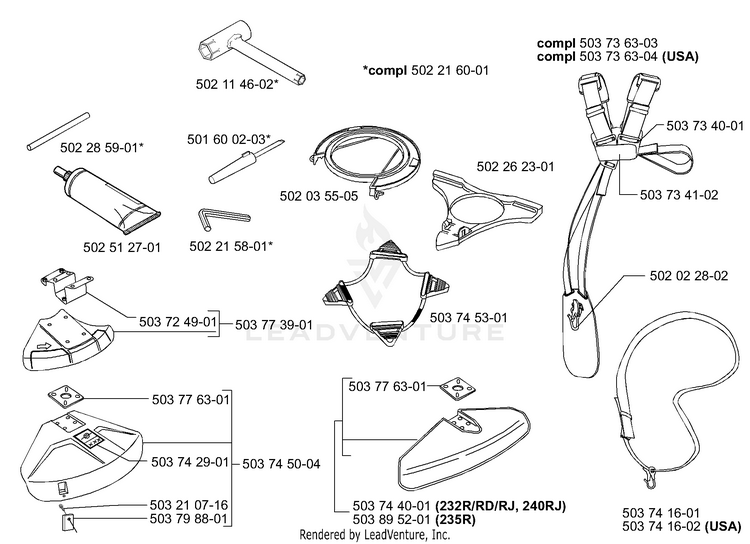

Schematic Image Zoomed
