product name

Husqvarna 232 L (2000-10) Trimmer

Model: 232 L (2000-10)

Back To Assemblies

Save Part Not Listed?
product name

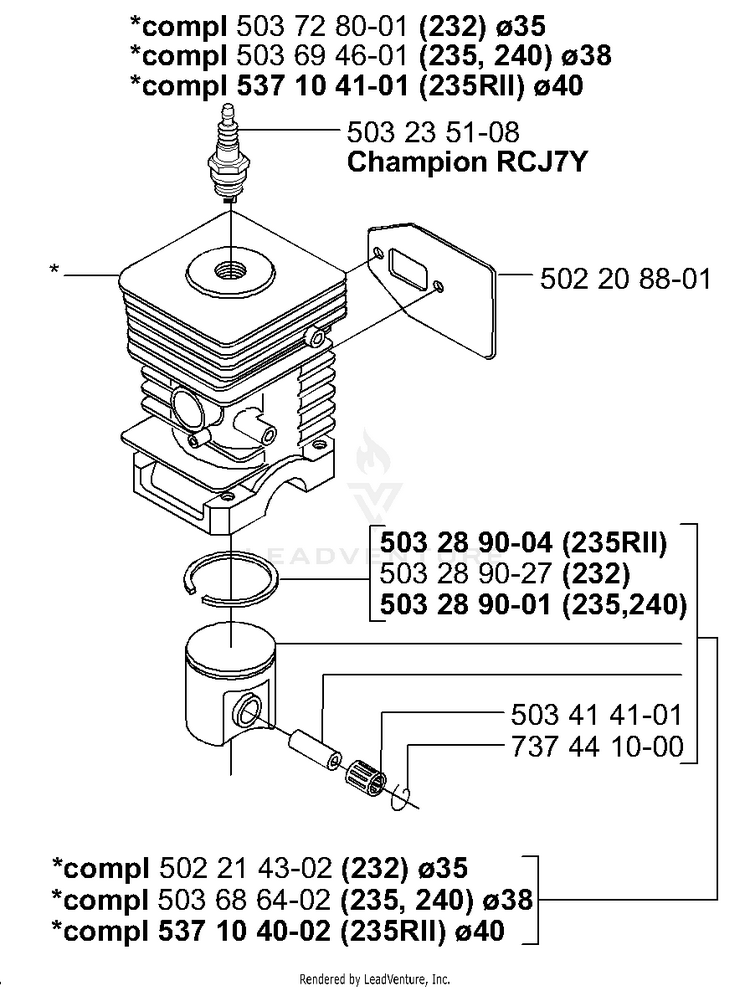

Piston / Cylinder

...
...
503728001
Cylinder Cpl (232) DIA. 35; COMPL HUS-503728001
...
503694601
CYLINDER W/PISTON (235,240) DIA. COMPL HUS-503694601
...
537104101
CYLINDER (235RII) DIA. COMPL HUS-537104101
...
503235108
SPARK PLUG M14X1.25 NGK BPMR7A CHAMPION HUS-503235111
...
502208801
GASKET MUFFLER HUS-502208801
...
503289004
PISTON RING (235RII) HUS-537400001
...
503289027
PISTON RING (232) HUS-503289027
...
503289001
PISTON RING (235, 240) HUS-503289001
...
503414101
SUPPORT BUSHING HUS-503414101
...
737441000
LOCKING RING HUS-737441000
...
502214302
PISTON (232) DIA. 35; COMPL HUS-502214302
...
503686402
PISTON COMPLETE (235, 240) DIA. 38 HUS-503686402
...
537104002
PISTON ASSY (235RII) DIA. 40 HUS-537104002
