Husqvarna 232 L (1998-01) Line Trimmer

Model: 232 L (1998-01)

Back To Assemblies

Save Part Not Listed?
product name

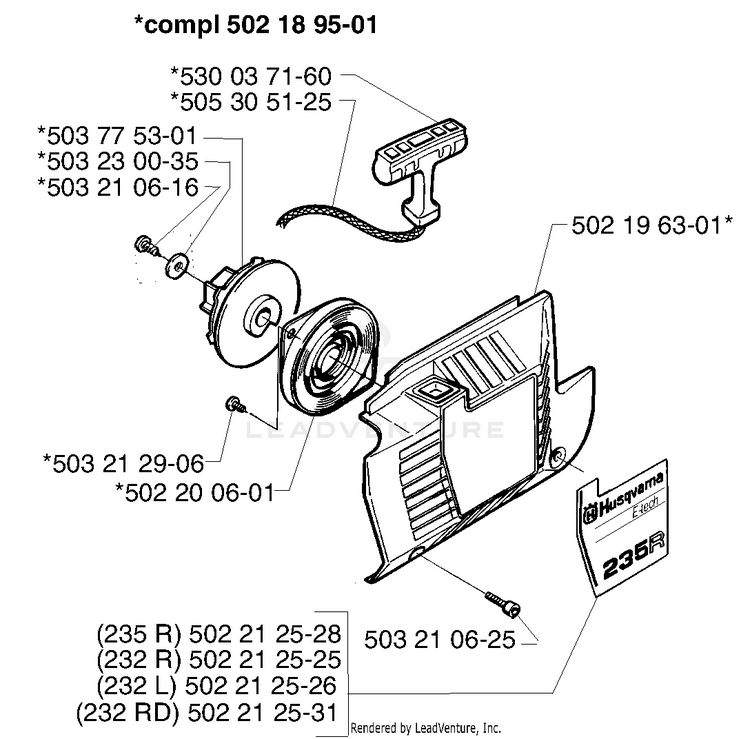

Starter Assembly

...
...
502189501
STARTER DEVICE HUS-502189502
...
530037160
STARTER HANDLE GRAY HUS-530150318
...
505305125
STARTER ROPE HUS-505305125
...
503775301
STARTER PULLEY HUS-503775301
...
503230035
WASHER 5.3X15 HUS-503230035
...
503210616
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
502196301
STARTER HOUSING ASSY. HUS-502189503
...
503212906
SCREW HUS-503212906
...
502200601
RECOIL SPRING HUS-502200601
...
502212528
DECAL STARTER DEVICE HUS-537356403
...
502212525
DECAL HUS-502212525
...
502212526
DECAL 232L HUS-537356401
...
502212531
HUS-502212531
...
503210625
SCREW HUS-503214925
