Husqvarna 23 LC (1993-05) Line Trimmer

Model: 23 LC (1993-05)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Cover

...
...
530014016
Crankcase Ass'y. HUS-530014016
...
530019158
SEAL-CRANKSHAFT HUS-530019158
...
530032102
BEARING-R8 (OUTER) HUS-530032102
...
530015789
RING-RETAINING (SHAFT) HUS-530015789
...
530015771
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
530015772
SCREW-10-24 X 1" (TAP.) HUS-530015772
...
530015126
KEY-FLYWHEEL HUS-530015126
...
530010934
ASSY-CRANKSHAFT HUS-530010934
...
530010960
ASS'Y-CONNECTING ROD HUS-530010960
...
530015787
RING-RETAINING HUS-530015787
...
530032103
Bearing-R8 (inner) HUS-530032103
...
530015788
SPACER-BEARING HUS-530015788
...
530015241
SCREW 6-19X.437 HUS-545227101
...
530027594
REED STOP HUS-530027594
...
530036233
REED VALVE HUS-530036233
...
530019154
GASKET-C'CASE/SHROUD HUS-530019154

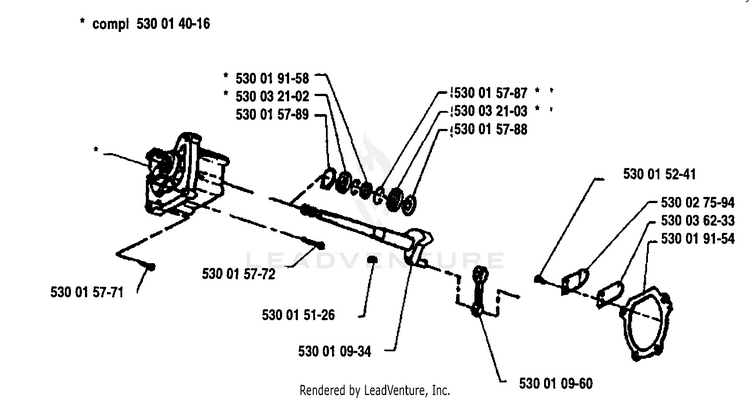

Schematic Image Zoomed
