Husqvarna 2275 Type 1 (2008-07) Chain Saw

Model: 2275 Type 1 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

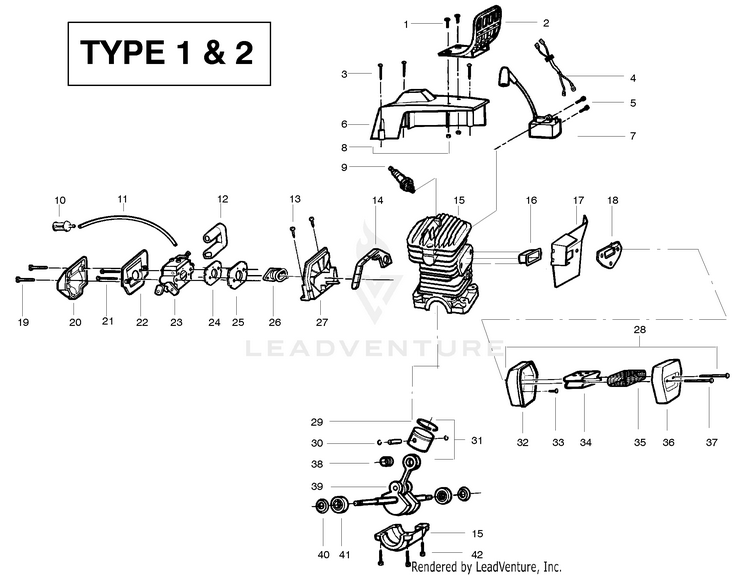

Engine - Type 1-2

...
...
1
Screw HUS-530015650
...
2
Handguard (Type 1 only) HUS-530047382
...
3
Screw HUS-530016154
...
4
Switch Wire Ass'y. HUS-530037467
...
5
Screw HUS-530015895
...
6
Cylinder Shield Kit HUS-530069700
...
7
IGNITION MODULE HUS-545199901
...
8
NUT HEX LOCK 10-24 HUS-530403094
...
9
BPMR7A NGK SPARK PLUG HUS-503235111
...
10
Assy-Fuel Pick-up HUS-530095646
...
11
Kit - Line Carb / Purge HUS-530069247
...
12
Grommet -Carb. HUS-530037464
...
13
Screw HUS-530015814
...
14
Super Clean Seal HUS-530019251
...
15
C'case&Cylinder Assy HUS-530014943
...
16
Heat Insulator HUS-530037652
...
17
BACKPLATE MUFFLER HUS-530056256
...
18
Muffler Gasket HUS-530019205
...
19
Screw HUS-530015899
...
20
Filter-Air (Top) HUS-545057701
...
21
Screw HUS-530015970
...
22
Filter-Air (Bottom) HUS-530059738
...
23
CARBURETOR HUS-545013503
...
24
Carburetor Gasket HUS-530019172
...
25
Carburetor Plate HUS-530037872
...
26
Kit-Carb.-Adapter HUS-530071654
...
27
Carb. Adaptor HUS-530053396
...
28
Muffler Kit (Incl. 32,34,36,37) HUS-530069707
...
29
Piston Ring HUS-530037380
...
30
Piston Pin Retainer HUS-530015697
...
31
Piston Kit (Incl. 29, 30 & 38) HUS-530069548
...
32
Muffler Body HUS-530037728
...
33
Bolt HUS-530015902
...
34
Diffuser HUS-530037813
...
35
Spark Screen HUS-530036103
...
36
Muffler Cover HUS-530037249
...
37
Muffler Bolt HUS-530016170
...
38
Piston Pin Bearing HUS-530032117
...
39
HUS-503920801
...
42
Screw HUS-530015897
...
42
Operator Manual Type 1 Not Shown HUS-530087840
...
42
Operator Manual Type 2 Not Shown HUS-530088787
...
42
Decal-Kickback Not Shown HUS-530047658
...
42
Scrench Not Shown HUS-530031163
...
42
Worm Gear Puller Not Shown HUS-530031136
...
42
Clutch Assy. Tool Not Shown HUS-530031112
...
42
Decal-Instruction Not Shown HUS-530055298
...
42
Decal - On/Stop Not Shown HUS-530038653
