Husqvarna 226 RJ (2012-06) Brushcutter/Clearing Saw

Model: 226 RJ (2012-06)

Back To Assemblies

Save Part Not Listed?
product name

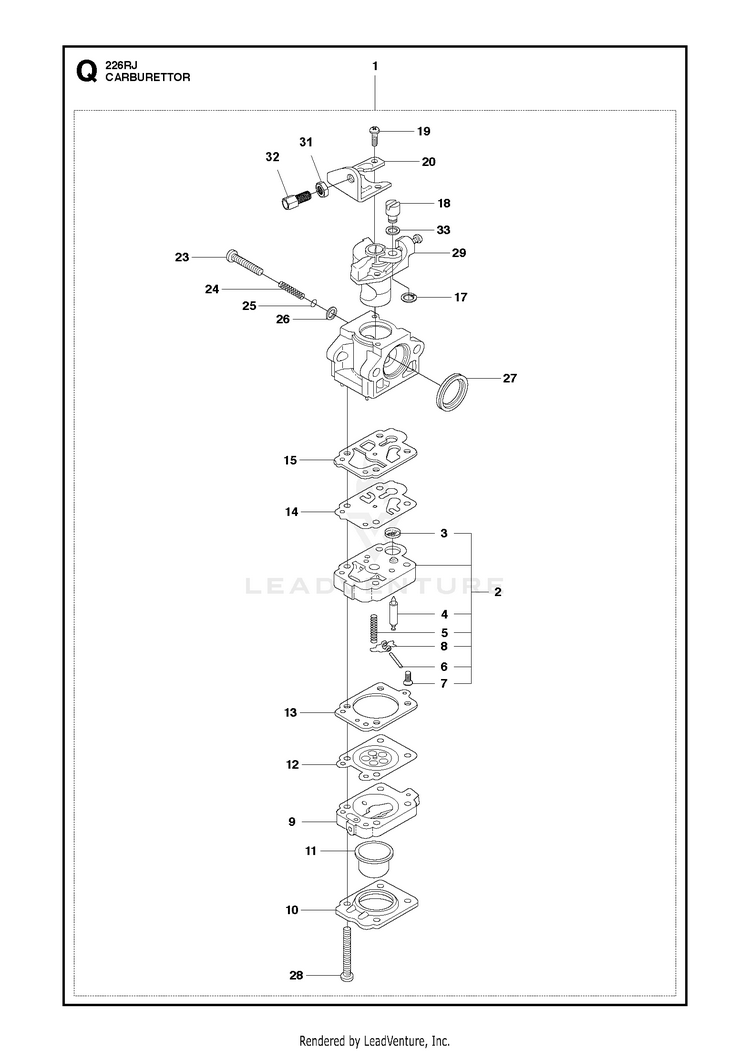

CARBURETOR

...
...
26
WASHER HUS-513437701
...
5
SPRING HUS-513410701
...
29
VALVE-A HUS-521770101
...
2
BODY-A HUS-513410801
...
1
NEEDS DESCRIPTION HUS-586508901
...
20
BRACKET HUS-506746001
...
19
SCREW HUS-505307901
...
6
PIN HUS-520977401
...
32
SCREW (RPLS 191881170) HUS-521756001
...
14
DIAPHRAGM HUS-506689801
...
3
RP_SCREEN (RPLS 331081380) HUS-574012501
...
23
NEEDS DESCRIPTION HUS-586846301
...
17
RING HUS-516523601
...
10
1OVER HUS-506741001
...
31
NUT HUS-510487401
...
13
GASKET HUS-506740801
...
18
SWIVEL HUS-506741201
...
4
VALVE INLET HUS-521085401
...
11
PUMP HUS-505306701
...
25
O-RING HUS-513437801
...
28
SCREW HUS-506741101
...
15
GASKET HUS-506745101
...
7
SCREW HUS-505306101
...
33
WASHER HUS-506746101
...
24
SPRING HUS-513301601
...
27
RING PACKING HUS-505308401
...
9
BODY HUS-506740901
...
8
LEVER HUS-520977201
...
12
DIAPHRAGM HUS-505306801
