Husqvarna 226 RJ (2012-06) Brushcutter/Clearing Saw

Model: 226 RJ (2012-06)

Back To Assemblies

Save Part Not Listed?
product name

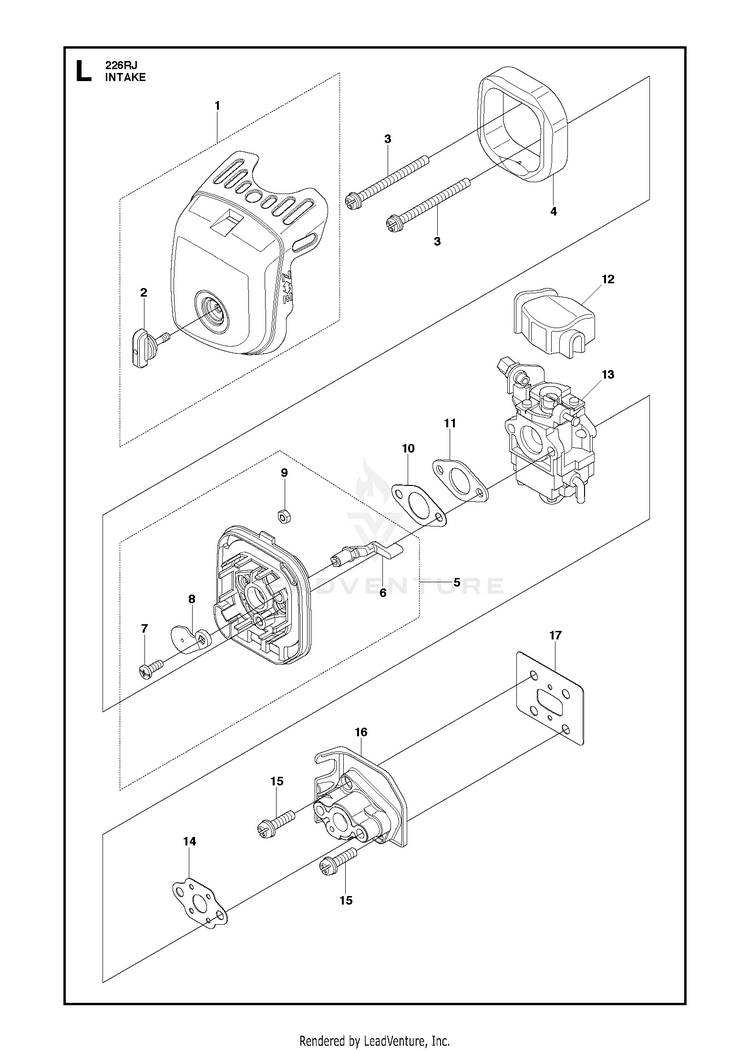

CARBURETOR & AIR FILTER

...
...
1
HUS-527918501
...
11
PLATE HUS-521774801
...
15
SCREW HUS-510482301
...
5
BODY-A HUS-512362701
...
7
RP_SCREW (RPLS 50030272) HUS-516771801
...
12
COVER HUS-506744201
...
14
GASKET HUS-515409901
...
13
NEEDS DESCRIPTION HUS-586508901
...
2
KNOB HUS-523071301
...
17
GASKET HUS-515409001
...
6
LEVER HUS-512362901
...
16
INSULATOR HUS-512359601
...
10
HUS-512382201
...
3
SCREW HUS-510483101
...
9
SLEEVE HUS-513454901
...
8
PLATE.CHOKE HUS-512362801
...
4
NEEDS DESCRIPTION HUS-521597901
Schematic Image Zoomed
