Husqvarna 226 R (2009-01) Brushcutter/Clearing Saw

Model: 226 R (2009-01)

Back To Assemblies

Save Part Not Listed?
product name

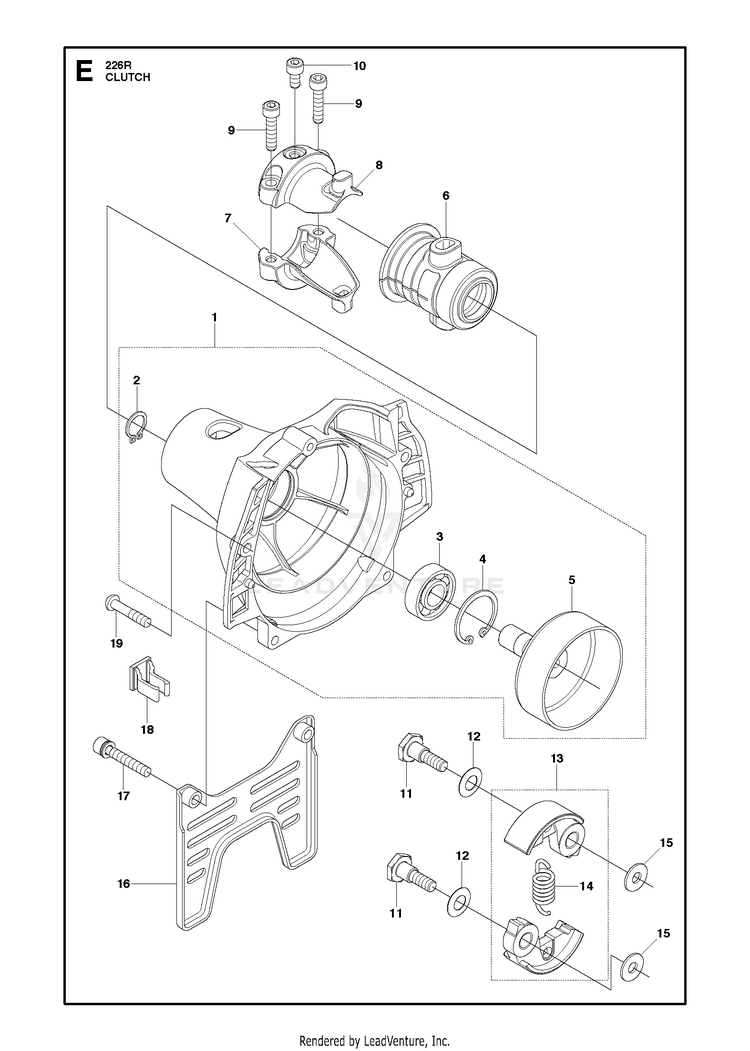

CLUTCH

...
...
13
SHOE COMP HUS-506629401
...
11
SCREW HUS-513189601
...
15
WASHER HUS-505054401
...
5
DRUM (RPLS 481031120-22) HUS-521609801
...
2
RING HUS-516124101
...
18
CLAMP HUS-521758801
...
19
SCREW HUS-510482301
...
16
GUARD HUS-511323601
...
1
HOUSING-A HUS-570825801
...
10
BOLT M5 X L10 HUS-505173901
...
6
CUSHION HUS-512360501
...
7
BRACKET (B) HUS-521768301
...
12
WASHER HUS-521758201
...
4
RING HUS-506609901
...
17
BOLT HUS-514234801
...
9
BOLT, M5 x 22 HUS-516070901
...
8
BRACKET (A) (RPLS T170031211) HUS-521768201
...
3
BEARING HUS-525953201
...
14
SPRING HUS-506685801
