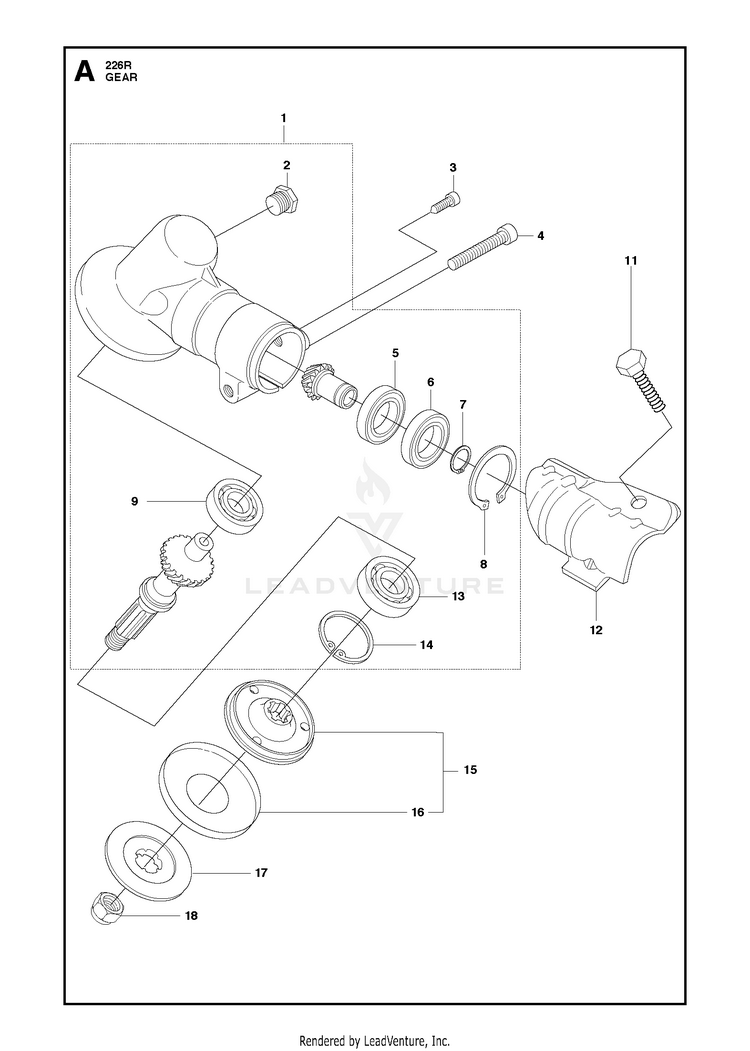

Husqvarna 226 R (2009-01) Brushcutter/Clearing Saw

Model: 226 R (2009-01)

Back To Assemblies

Save Part Not Listed?
product name

BEVEL GEAR

...
...
9
BALL BEARING 8X22X7/608Z HUS-738219800
...
16
DRIVE DISC HUS-537234901
...
6
BEARING HUS-738219902
...
12
CLAMP HUS-574306904
...
17
SUPPORT FLANGE HUS-537285601
...
18
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
1
GEARCASE-A HUS-537333202
...
4
SCREW M5X25 HUS-503200725
...
3
SCREW M5X12 HUS-503201412
...
11
SCREW M6x20 HUS-537189501
...
14
RETAINING RING SGH 28 HUS-735312810
...
15
DRIVE DISC HUS-537234901
...
7
RETAINING RING HUS-735311100
...
2
PLUG HUS-503201501
...
13
BALL BEARING HUS-738210104
...
8
RETAINING RING HUS-735312510
...
5
BALL BEARING 24X9X1/609ZR HUS-738219900
