Husqvarna 225 L (1996-06) Line Trimmer

Model: 225 L (1996-06)

Back To Assemblies

Save Part Not Listed?
product name

Handle

...
...
503780503
HANDLE HUS-503780503
...
503721401
THROTTLE LOCK HUS-503721401
...
503721501
THROTTLE TRIGGER HUS-503721501
...
503794101
SPRING HUS-503794101
...
503755901
ABSORBER HUS-502203203
...
503722401
BRACKET HUS-503722401
...
502197101
NUT HUS-502197101
...
731231401
NUT HUS-731231401
...
502204901
CLAMP HUS-502286101
...
503200225
SCREW HUS-503200225
...
503714301
SHAFT HUS-503714301
...
503575401
USA HUS-503575401
...
503734201
THROTTLE WIRE HUS-503734201
...
503734301
WIRE HUS-503734301
...
502218001
TUBE HUS-503889501
...
503889501
TUBE CARB HUS-503889501
...
503575501
HUS-503575501
...
503808701
DECAL HUS-503901301
...
735580810
WASHER HUS-735580810
...
503727701
LOWER SHAFT HUS-503727701
...
725237951
SCREW HUS-725237951
...
502203801
HANDLE HUS-502203801
...
501408901
WASHER HUS-501408901
...
503715202
TUBE/LOWER HUS-503889602
...
503889602
TUBE/LOWER CARB HUS-503889602
...
503708001
CONNECTOR HUS-503708001
...
503715401
BRACKET HUS-503715401
...
503200210
SCREW M5 X 10 HUS-503200710
...
503750201
DECAL USA, RD HUS-503750201
...
503795601
DECAL WARNING "NO BLADES" LD HUS-503795601
...
503714302
UPPER SHAFT HUS-503714302
...
503200225
SCREW HUS-503200225
...
503755901
ABSORBER HUS-502203203
...
503795801
HUS-503795801
...
503718201
START/STOP SWITCH HUS-503718201
...
503210722
SCREW HUS-503216722
...
503721301
THROTTLE HSG RH HUS-503721301
...
503721201
THROTTLE HSG LH HUS-503721201
...
503721801
COVER HUS-503721801
...
503750201
DECAL L,LD HUS-503750201
...
503734501
DECAL HUS-503734501
...
503210716
SCREW HUS-503210716
...
503734702
COVER HUS-503734702
...
503722501
HOUSING HUS-503722501
...
503715201
TUBE/UPPER HUS-503889601
...
503889601
TUBE/UPPER HUS-503889601
...
503734501
DECAL HUS-503734501

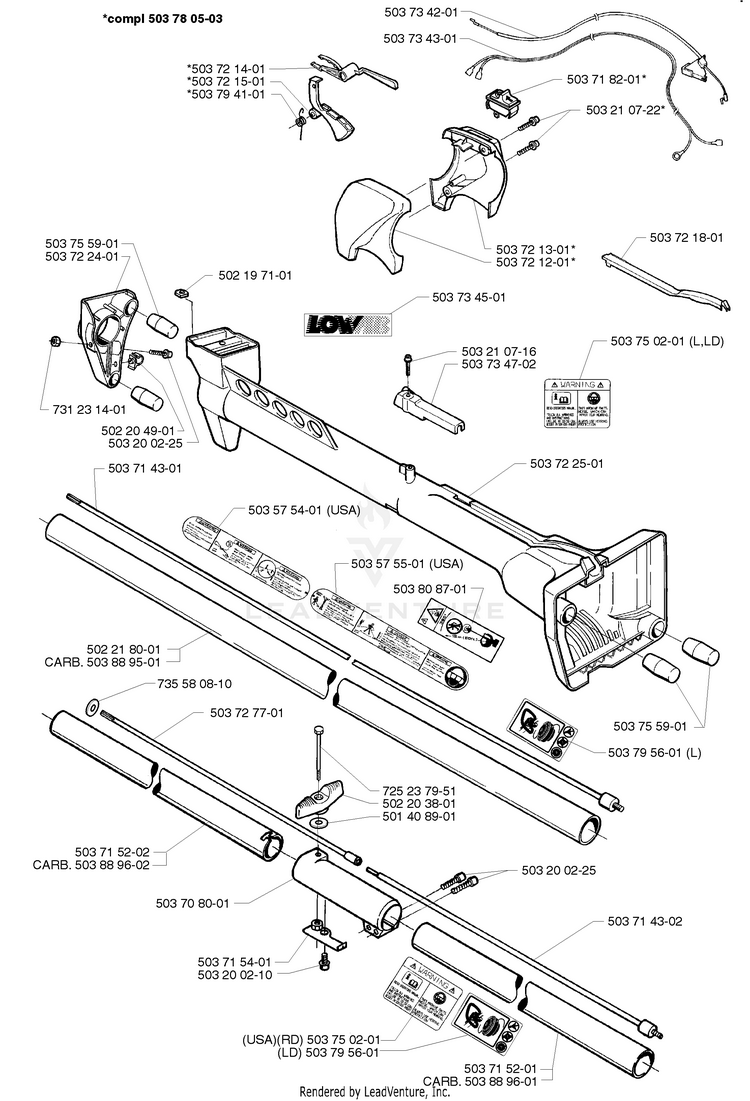

Schematic Image Zoomed
