Husqvarna 225 L (1996-06) Line Trimmer

Model: 225 L (1996-06)

Back To Assemblies

Save Part Not Listed?
product name

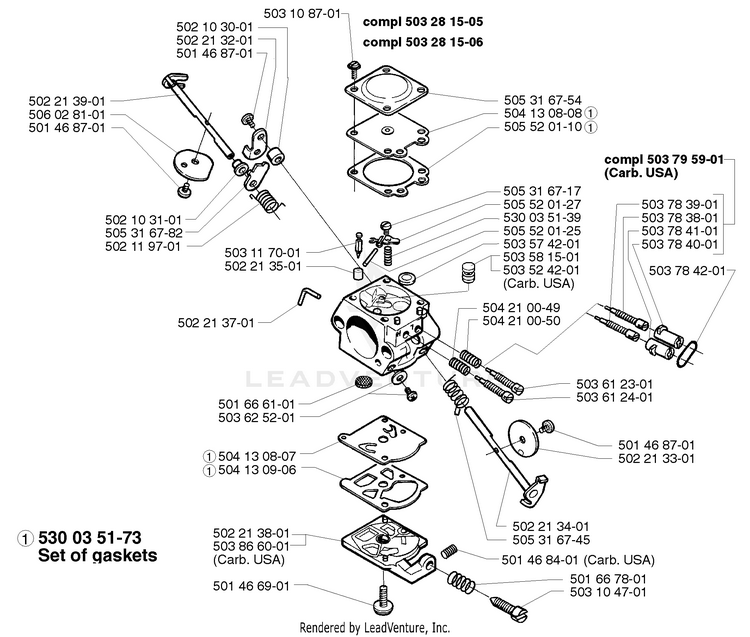

Carburetor Parts

...
...
503108701
SCREW HUS-503584601
...
502103001
SPACER HUS-502103001
...
502213201
LEVER, THROTTLE HUS-502213201
...
501468701
SCREW HUS-501468701
...
502213901
CHOKE SHAFT HUS-502213901
...
506028101
FLAP HUS-506028101
...
501468701
SCREW HUS-501468701
...
502103101
BUSHING HUS-502103101
...
505316782
STARTER LEVER HUS-505316782
...
502119701
SPRING HUS-502119701
...
503117001
VALVE/INLET. HUS-503117001
...
502213501
Plug HUS-502213501
...
502213701
FUEL LINE FITTING HUS-502213701
...
501666101
FUEL INLET SCREEN HUS-501666101
...
503625201
SCREW HUS-503625201
...
504130807
PUMP DIAPHRAGM Set of gaskets 530035173 HUS-504130807
...
504130906
GASKET Set of gaskets 530035173 HUS-504130906
...
502213801
Cover, Fuel HUS-502213801
...
503866001
Carb. USA HUS-503866001
...
530035173
GASKET/DIAPHRAGM KIT HUS-530069844
...
501466901
SCREW HUS-501466901
...
503104701
SCREW HUS-503104701
...
501667801
IDLE SCREW SPRING HUS-530035121
...
501468401
SPRING HUS-501468401
...
505316745
SPRING HUS-505316745
...
502213401
SHAFT ASSY, THROTTLE HUS-502213401
...
502213301
Throttle Flap HUS-502213301
...
501468701
SCREW HUS-501468701
...
503612401
HI SPEED NEEDLE HUS-503612401
...
503612301
Lo-Speed Needle HUS-503612301
...
505316754
DIAPHRAGM COVER HUS-505316754
...
504130808
DIAPHRAGM Set of gaskets 530035173 HUS-503896701
...
505520110
GASKET, METERING SIDE Set of gaskets 530035173 HUS-505520110
...
503795901
Carb. USA HUS-503795901
...
505316717
SCREW HUS-505316717
...
505520127
LEVER HUS-505520127
...
530035139
SPRING-METERING LEVER HUS-530035188
...
505520125
FULCRUM PIN HUS-505520125
...
503574201
WELCH PLUG Carb. USA HUS-503574201
...
503581501
JET HUS-503581501
...
503524201
NOZZLE HUS-503524201
...
503783901
HUS-503783901
...
503783801
HUS-503783801
...
503784101
GOVERNOR Carb. USA HUS-503784101
...
503784001
HUS-503784001
...
503784201
O-RING HUS-503784201
...
504210049
SPRING, H-NEEDLE HUS-504210049
...
504210050
NEEDLE SPRING HUS-530035293
...
503281505
CARBURETOR WT-964-1 Walbro WT 235 HUS-577133001
...
503281506
CARBURETOR WT-964-1 Walbro WT 270 Carb. USA HUS-577133001
...
530035173
GASKET/DIAPHRAGM KIT Set of gaskets HUS-530069844
