product name

Husqvarna 225 L (1994-06) Line Trimmer

Model: 225 L (1994-06)

Back To Assemblies

Save Part Not Listed?
product name

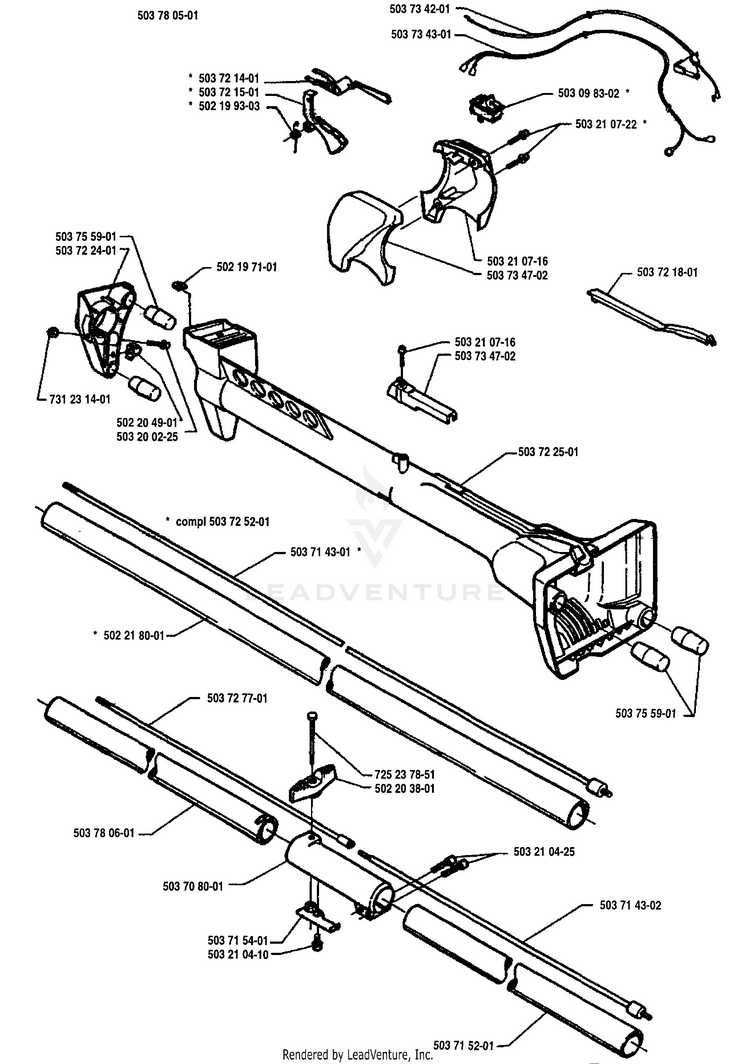

Tube Assembly

...
...
503755901
ABSORBER HUS-502203203
...
503722401
BRACKET HUS-503722401
...
502197101
NUT HUS-502197101
...
731231401
NUT HUS-731231401
...
502204901
CLAMP HUS-502286101
...
503200225
SCREW HUS-503200225
...
503725201
Shaft HUS-503725201
...
503714301
SHAFT HUS-503714301
...
502218001
TUBE HUS-503889501
...
503727701
LOWER SHAFT HUS-503727701
...
503780601
TUBE/LOWER HUS-503889602
...
503708001
CONNECTOR HUS-503708001
...
503715401
BRACKET HUS-503715401
...
503210410
SCREW M5 X 10 HUS-503200710
...
503210425
SCREW HUS-503200225
...
503714302
UPPER SHAFT HUS-503714302
...
503715201
TUBE/UPPER HUS-503889601
...
725237851
SCREW HUS-725237851
...
502203801
HANDLE HUS-502203801
...
503755901
ABSORBER HUS-502203203
...
503210716
SCREW HUS-503210716
...
503724702
HUS-503724702
...
503722501
HOUSING HUS-503722501
...
503721801
COVER HUS-503721801
...
503210716
SCREW HUS-503210716
...
503734702
COVER HUS-503734702
...
503210722
SCREW HUS-503216722
...
503098302
START/STOP SWITCH HUS-503718201
...
503724201
HUS-503724201
...
503734301
WIRE HUS-503734301
...
503780501
HANDLE HUS-503780503
...
502199303
HUS-502199303
...
503721401
THROTTLE LOCK HUS-503721401
...
503721501
THROTTLE TRIGGER HUS-503721501
